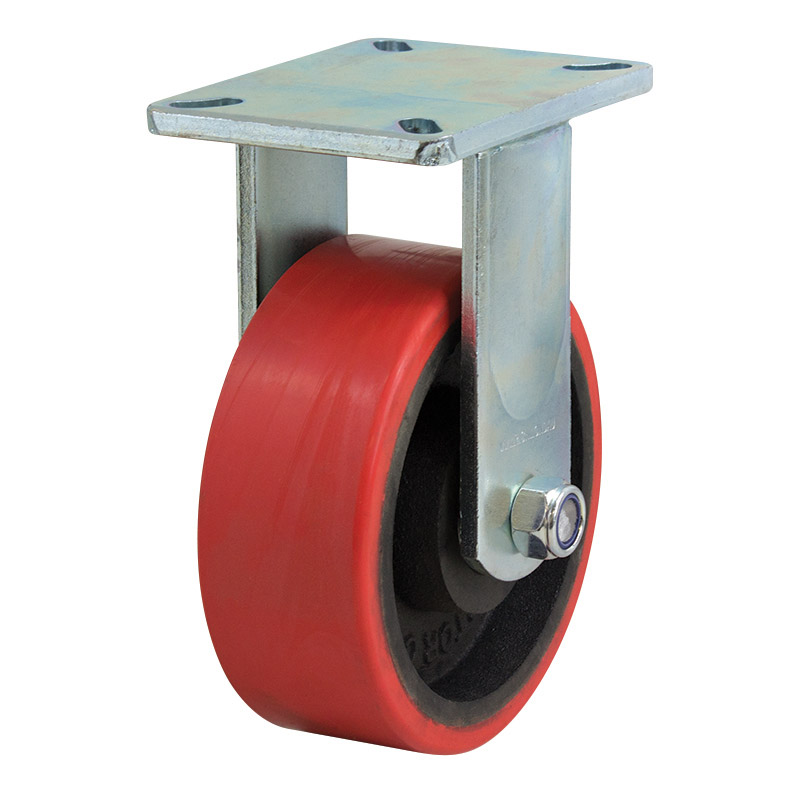

200mm Poly Wheel 1500Kg Capacity Castor (R8003)

The R8003 by Richmond is a rigid frame castor and features a polyurethane wheel. This rigid castor is one of our forged head series range and has a maximum capacity of 1500kg. The R8003 uses ball bearings for wheel rotation. The rigid frame only allows linear movement unless used with swivel castors. The diameter of the polyurethane wheel is 200mm, the wheel width is 75mm and can be ordered separately (PU824).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

Product Code	R8003
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	75
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU824
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	268
Swivel Radius (mm)	156
Maximum Load Capacity (kg)	1500
Towable	Yes
