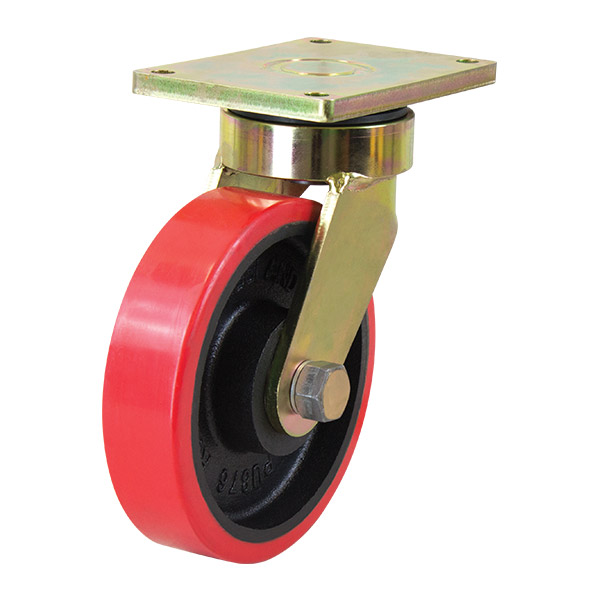

200mm Poly CI Wheel 1200kg Capacity Castor (S810)

The S810 by Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is one of our high performance series range and can safely take loads up to 1200kg. The S810 wheel is fitted with ball bearings. This castors swivel frame allows for full 360° swivel rotation. The overall polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (PU876). This model can also be ordered with a brake (part number S810B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

When performance and endurance are key concerns, the High Performance castor is world class. A large opposed taper roller bearing in the swivel head means the castor can be power towed at speeds up to 12kph over flat surfaces without obstructions. The steel passivated zinc plated frame is robot welded and a fully sealed greasable swivel head make this castor easy to maintain. Richmond’s High Performance Series is custom designed and manufactured in-house to specification.

Product Code	S810
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU876
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	264
Swivel Radius (mm)	172
Maximum Load Capacity (kg)	1200
Towable	Yes
