200mm Poly Ci Wheel 1000Kg Capacity Castor (R8069)

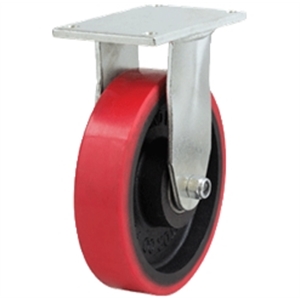

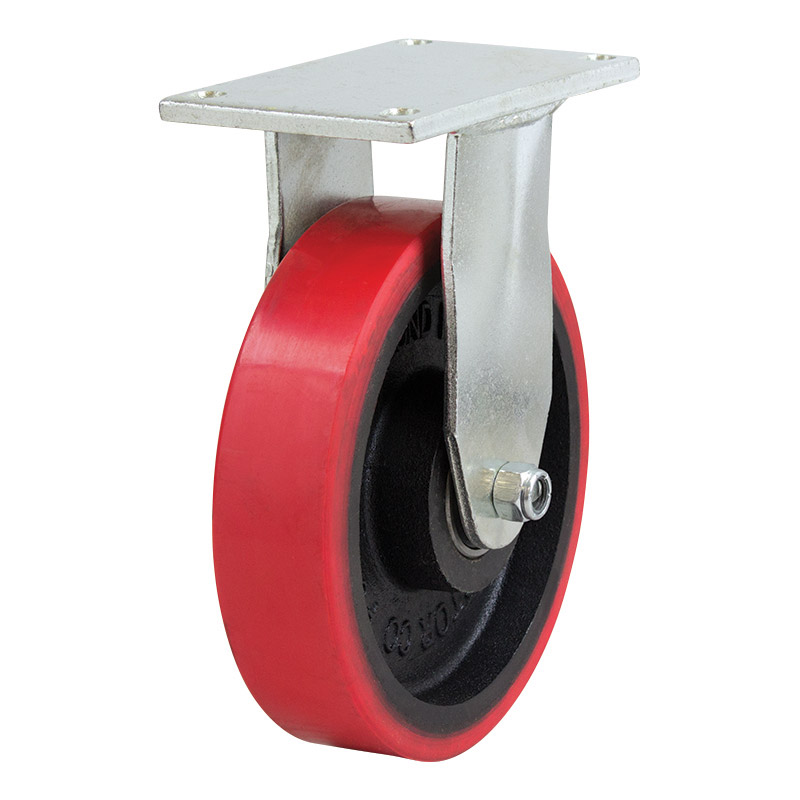

The R8069 from Richmond Rolling Solutions is a rigid frame castor and is fitted with a polyurethane tyred cast iron wheel. This rigid castor is in our 1000 series range and has a maximum capacity of 1000kg. The R8069 is assembled with ball bearings on the castors axle. This castors rigid frame allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (PU876).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	R8069
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU876
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Swivel Radius (mm)	155
Maximum Load Capacity (kg)	1000
Towable	Yes
