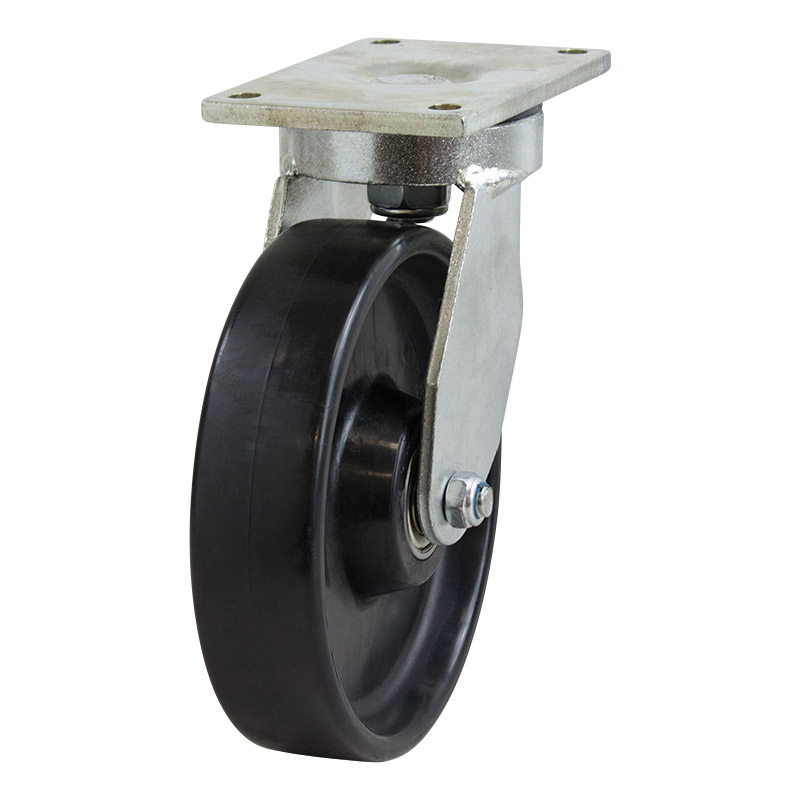

200mm Nylon Wheel 400kg Capacity Castor
Model Number: S8280
Frame Type: Swivel
- Swivel
- Rigid
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S8280 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Nylon |
| Wheel Code | NY800 |
The S8280 by Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is in our 500 series range and can hold loads up to 400kg. The S8280 uses Stainless Steel Sleeve Bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: NY800).
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond's 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer's due to the reliability and performance of this robust castor.
View Specifications
| Product Code | S8280 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel |
| Wheel Width (mm) | 50 |
| Wheel Type | Nylon |
| Wheel Code | NY800 |
| Wheel Bearing Type | Stainless Steel Sleeve |
| Castor Height (mm) | 248 |
| Swivel Radius (mm) | 155 |
| Maximum Load Capacity (kg) | 400 |
| Recommended Load Capacity (kg) | 300 |
| Towable | No |
