200mm Donut Profile Poly on Aluminium Wheel Castor 250kg Capacity (R8261)

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 15kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth.

Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Steel Manufacture and Rapid Moving production lines, all due to the reliability and performance of this robust castor.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

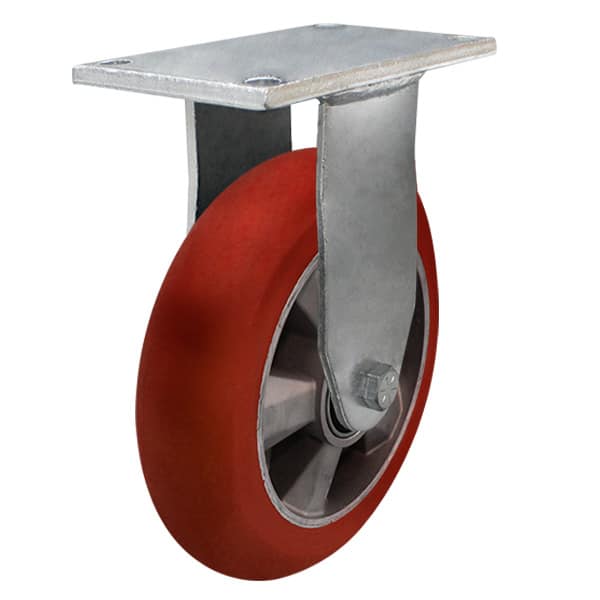

The R8261M3 from Richmond Rolling Solutions is a rigid frame castor and has a polyurethane wheel. This rigid castor is one of our 500 series range and can hold loads up to 250kg. The R8261M3 is assembled with ball bearings on the castors axle. The rigid frame allows for steering only when used with swivel castors. The outside diameter of the polyurethane wheel is 200mm, the wheel width is 50mm and can be ordered separately (PU815).

Product Code	R8261
Wheel Diameter (mm)	200
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Aluminium Centred
Wheel Code	PU815
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	248
Maximum Load Capacity (kg)	250
Recommended Load Capacity (kg)	200
Towable	Yes

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
