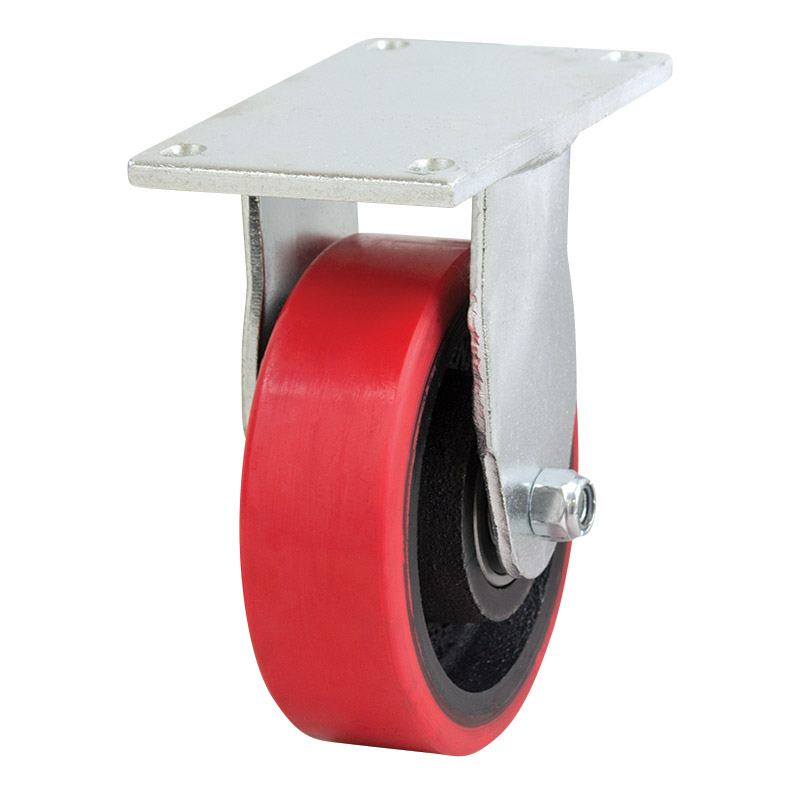

150mm Poly Ci Wheel 900Kg Capacity Castor (R6339)

The R6339 manufactured by Richmond Rolling Solutions is a rigid frame castor and has a polyurethane tyred cast iron wheel. This rigid castor is part of our 1000 series range and can safely take loads up to 900kg. The R6339 is assembled with ball bearings on the castors axle. This castors rigid frame only allows linear movement unless used with swivel castors. The polyurethane tyred cast iron wheel diameter is 150mm, the wheel width is 50mm and can be ordered separately (PU659).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code	R6339
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU659
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Swivel Radius (mm)	130
Maximum Load Capacity (kg)	900
Towable	Yes

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
