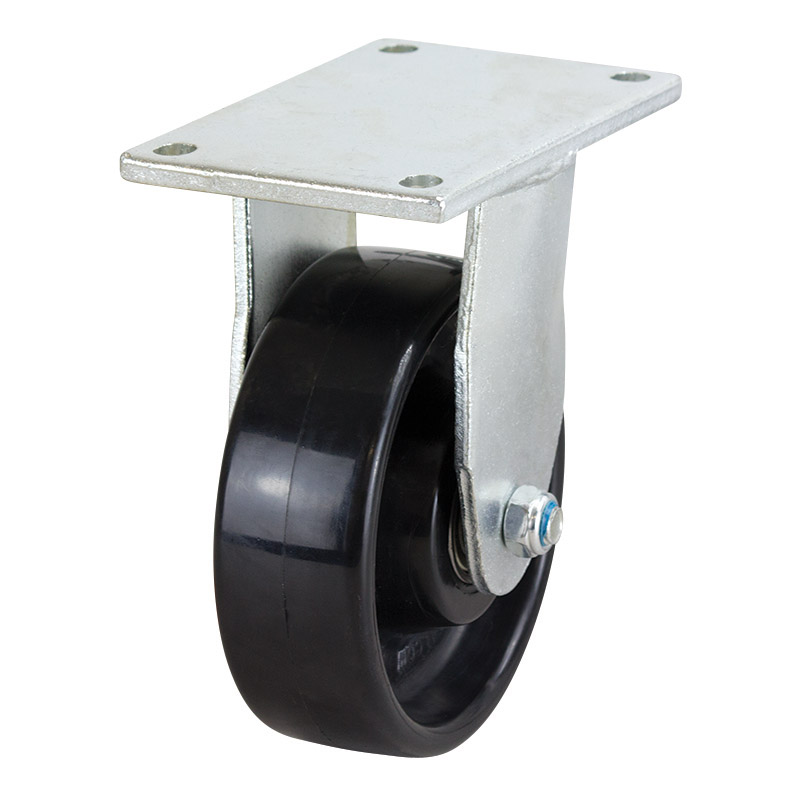

150mm Nylon Wheel 400kg Capacity Castor (R6121)

The R6121 from Richmond is a rigid frame castor and features a nylon wheel. This rigid castor is part of our 500 series range and has a maximum capacity of 400kg. The R6121 is assembled with ball bearings on the castors axle. This castors rigid frame is ideal for linear movement however steering can be achieved by using with swivel castors. The outside diameter of the nylon wheel is 150mm, the wheel width is 50mm and can be ordered separately (NY613).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6121
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY613
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Maximum Load Capacity (kg)	400
Recommended Load Capacity (kg)	300
Towable	No
