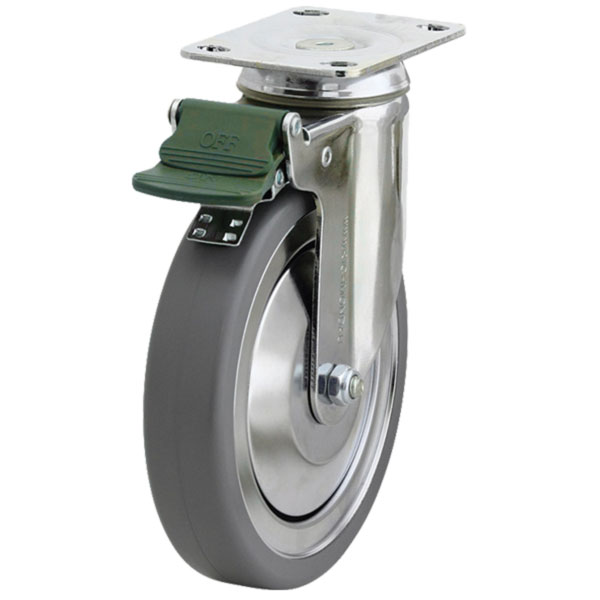

150mm Inst Swivel Chrome Durolite Castor (S6674D)

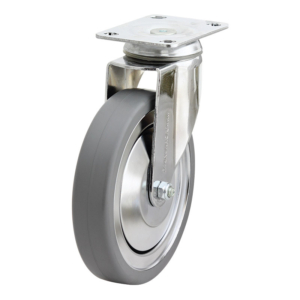

The S6674D manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is part of our chrome durolite plate range and can hold loads up to 100kg. The S6674D uses ball bearings for wheel rotation and is mounted with the baseplate. The swivel frame design of this castor allows the load to be steered. The outside diameter of the institutional rubber wheel is 150mm, the wheel width is 32mm and can be ordered separately (iR6009). This model can also be ordered without the direction lock (part number S6674).

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Truly the best looking durable castor in its class, Richmond’s Chrome Durolite Series is ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. The combination of a pressed metal frame and chrome finish provides both strength and corrosion resistance. A robust twin swivel race design provides durability and longevity in the workplace.

Product Code	S6674D
Wheel Diameter (mm)	150
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR6009
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	190
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
