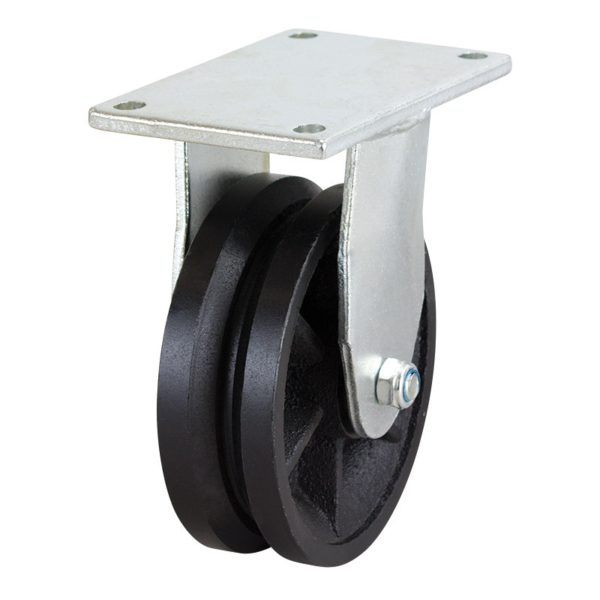

150mm Cast Iron Wheel 500kg Capacity Castor (R6451)

The R6451 from Richmond is a rigid frame castor and uses a cast iron wheel. This rigid castor is one of our 500 series range and can safely take loads up to 500kg. The R6451 wheel is fitted with ball bearings. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The cast iron wheel diameter is 150mm, the wheel width is 38mm and you can order separately (Part Number: VG609).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	R6451
Wheel Diameter (mm)	150
Frame Type	Rigid
Wheel Width (mm)	50
Wheel Type	VG Cast Iron
Wheel Code	VG609
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	194
Maximum Load Capacity (kg)	500
Recommended Load Capacity (kg)	380
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
