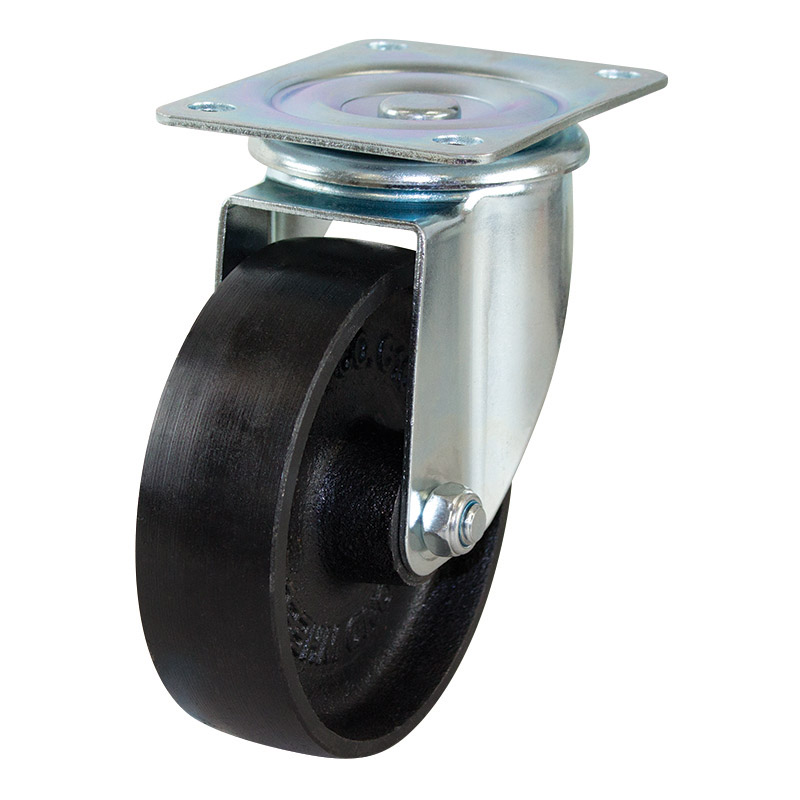

150mm Cast Iron Wheel 300kg Capacity Castor (S6050)

The S6050 from Richmond is a swivel frame castor and uses a cast iron wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S6050 is assembled with plain bearings on the castors axle and is mounted with the baseplate. The swivel frame of this castor allows the castor to swivel 360°. The cast iron wheel diameter is 150mm, the wheel width is 45mm and can be ordered separately (Ci611).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S6050
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	45
Wheel Type	Cast Iron
Wheel Code	Ci611
Wheel Bearing Type	Plain Bore
Castor Height (mm)	187
Swivel Radius (mm)	112
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225
Temperature range (°C)	-30° to 300°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
