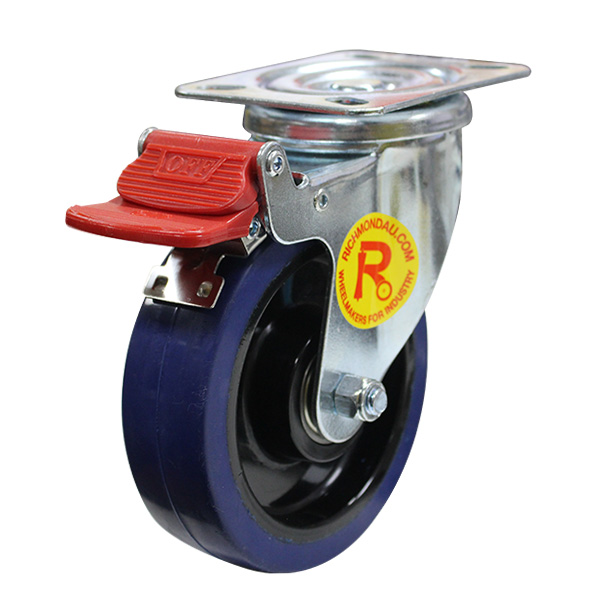

125mm Rebound Rubber Wheel 200kg Capacity Castor (S5042B)

The S5042B by Richmond Rolling Solutions is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is in our 300 series plate range and has a maximum capacity of 200kg. The S5042B is assembled with ball bearings on the castors axle and is plate mount. This castors swivel frame permits the load to be steered. The overall rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). For the same castor without a brake, see S5042.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S5042B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Rebound Rubber
Wheel Code	RR55077
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
