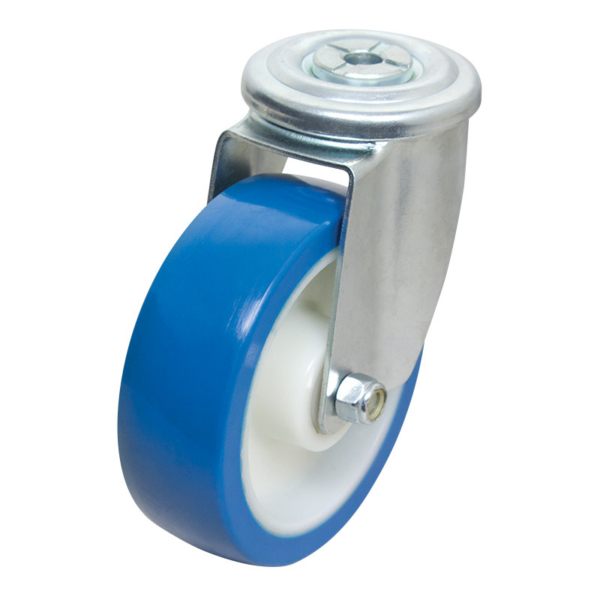

125mm Rebound Polyurethane Bolt Hole 300 Series Castor (S5216)

The S5216 manufactured by Richmond is a swivel frame castor and has a rebound polyurethane wheel. This swivel castor is in our 300 series bolt hole range and has a maximum capacity of 200kg. The S5216 is assembled with stainless steel roller bearings on the castors axle and is bolt mounted. This castors swivel frame allows for full 360° swivel rotation. The diameter of the rebound polyurethane wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: RP5072). To order this castor with a brake, search for S5216B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5216
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Rebound Polyurethane
Wheel Code	RP5072
Wheel Bearing Type	Stainless Roller Bearing
Castor Height (mm)	157
Swivel Radius (mm)	112
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
