125mm Polyurethane Tyre on Cast Iron Centre Wheel 200kg Capacity Castor (R5049)

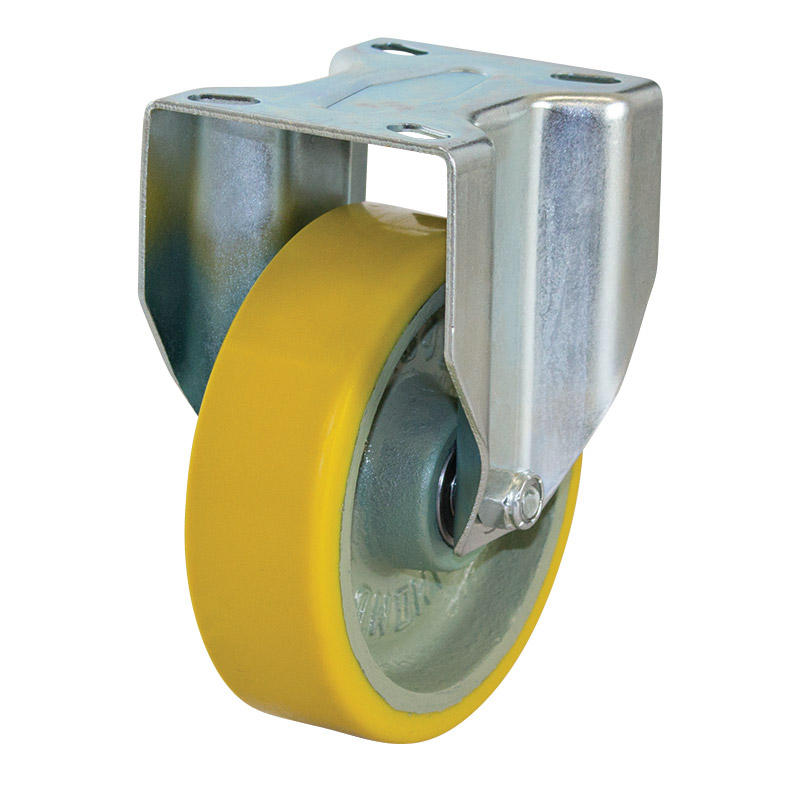

The R5049 from Richmond is a rigid frame castor and features a polyurethane tyred cast iron wheel. This rigid castor is part of our 300 series plate range and can safely take loads up to 300kg. The R5049 uses ball bearings for wheel rotation and is mounted with the baseplate. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The polyurethane tyred cast iron wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: PU549).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R5049
Wheel Diameter (mm)	125
Frame Type	Rigid
Wheel Width (mm)	35
Wheel Type	Poly Cast Ion
Wheel Code	PU549
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
