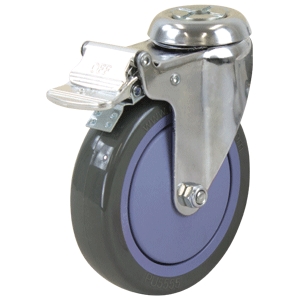

125mm Poly Nylon Swivel Chrome Durolite Castor (S5581D)

The S5581D manufactured by Richmond Rolling Solutions is a swivel frame castor and has a polyurethane wheel. This swivel castor is in our chrome durolite bolt range and has a top load capacity of 100kg. The S5581D is assembled with ball bearings on the castors axle and is bolt mount. The swivel frame of this castor allows the castor to swivel 360°. The polyurethane wheel diameter is 125mm, the wheel width is 27mm and you can order separately (Part Number: PU5554). For the same castor without a direction lock, see S5581.

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame

View Specifications View Specifications Shipping Information

Description
Specifications

Description

A high quality polished chrome finish makes this castor ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. With all the features of the plate type castor, the bolt castor has the ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt a robust twin swivel race action providing durability.

Product Code	S5581D
Wheel Diameter (mm)	125
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	27
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU5554
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
