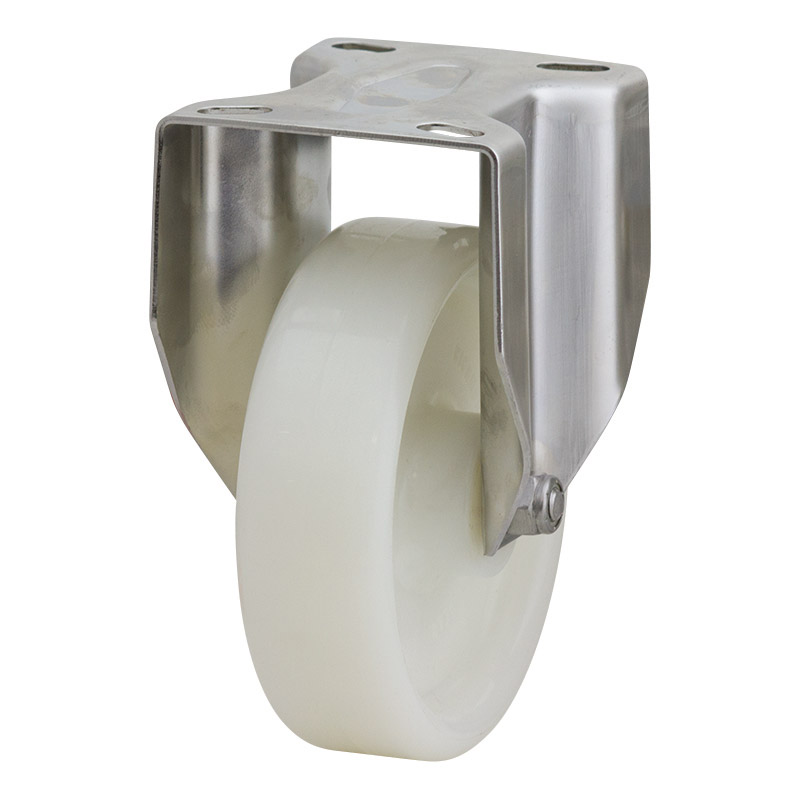

125mm Nylon Wheel 200kg Capacity Castor (R5143)

The R5143 from Richmond is a rigid frame castor and is fitted with a nylon wheel. This rigid castor is in our stainless steel excel plate range and has a maximum capacity of 200kg. The R5143 is assembled with plain bearings on the castors axle and is baseplate mount. The rigid frame design of this castor allows for steering only when used with swivel castors. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and you can order separately (Part Number: NY501).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

Product Code	R5143
Wheel Diameter (mm)	125
Frame Type	Rigid
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY501
Wheel Bearing Type	Plain Bore
Castor Height (mm)	158
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	110

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
