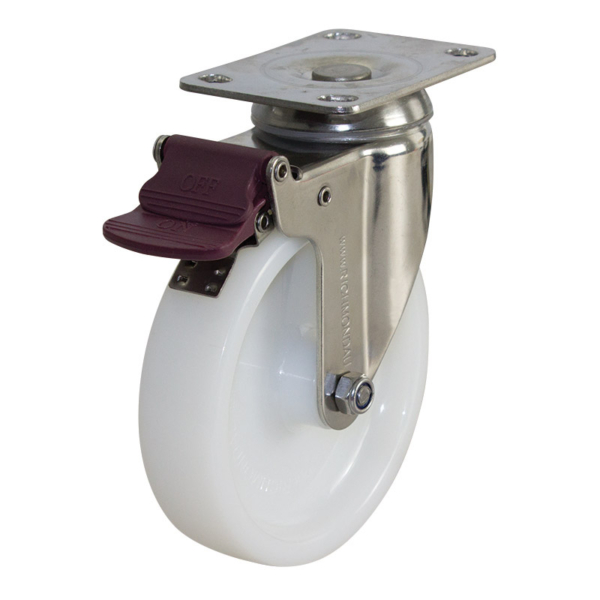

125mm Nylon Wheel 100kg Capacity Castor (S5588B)

The S5588B by Richmond Rolling Solutions is a swivel frame castor and uses a nylon wheel. This swivel castor is in our stainless steel elite plate range and can hold loads up to 100kg. The S5588B wheel is fitted with plain bearings and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The overall nylon wheel diameter is 125mm, the wheel width is 30mm and can be ordered separately (NY5517). For the same castor without a brake, see S5588.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code	S5588B
Wheel Diameter (mm)	125
Frame Type	Swivel with Brake
Wheel Width (mm)	30
Wheel Type	Nylon
Wheel Code	NY5517
Wheel Bearing Type	Plain Bore
Castor Height (mm)	159
Swivel Radius (mm)	106
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
