125mm Nylon Bolt Hole 300 Series Castor (S5224)

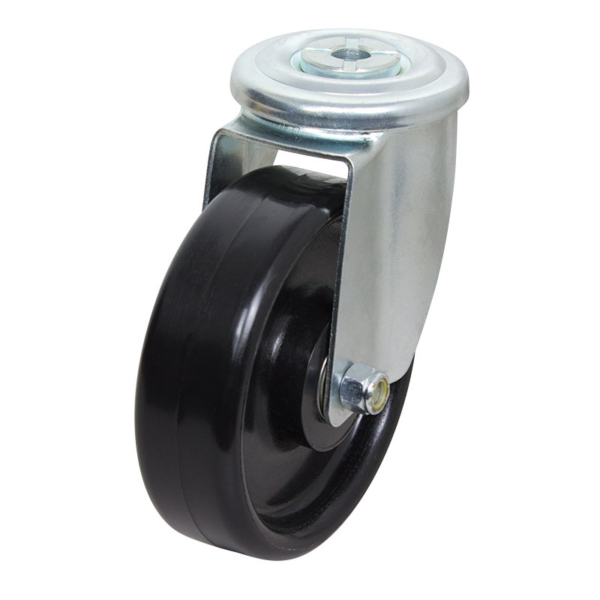

The S5224 from Richmond is a swivel frame castor and has a nylon wheel. This swivel castor is part of our 300 series bolt hole range and can hold loads up to 200kg. The S5224 uses ball bearings for wheel rotation and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the nylon wheel is 125mm, the wheel width is 35mm and can be ordered separately (NY513). For the same castor with a brake, see S5224B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S5224
Wheel Diameter (mm)	125
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY513
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	157
Swivel Radius (mm)	112
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
