125mm Anti-Static Swivel Single Bolt Castor (S5593D)

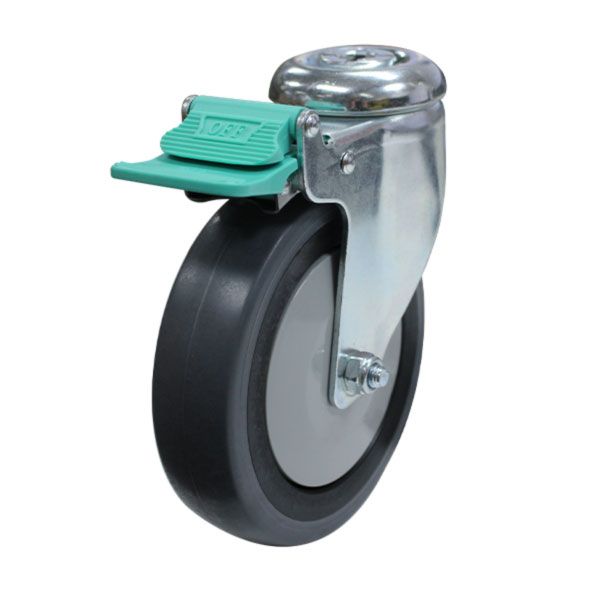

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.The twin wheel low profile design not only increase maneuverability but increases load capacity to Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment consoles and more.

View Specifications View Specifications Shipping Information

Specifications

Product Code	S5593D
Wheel Diameter (mm)	125
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	32
Wheel Type	Anti-Static
Wheel Code	AS5005
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	159
Swivel Radius (mm)	106
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
