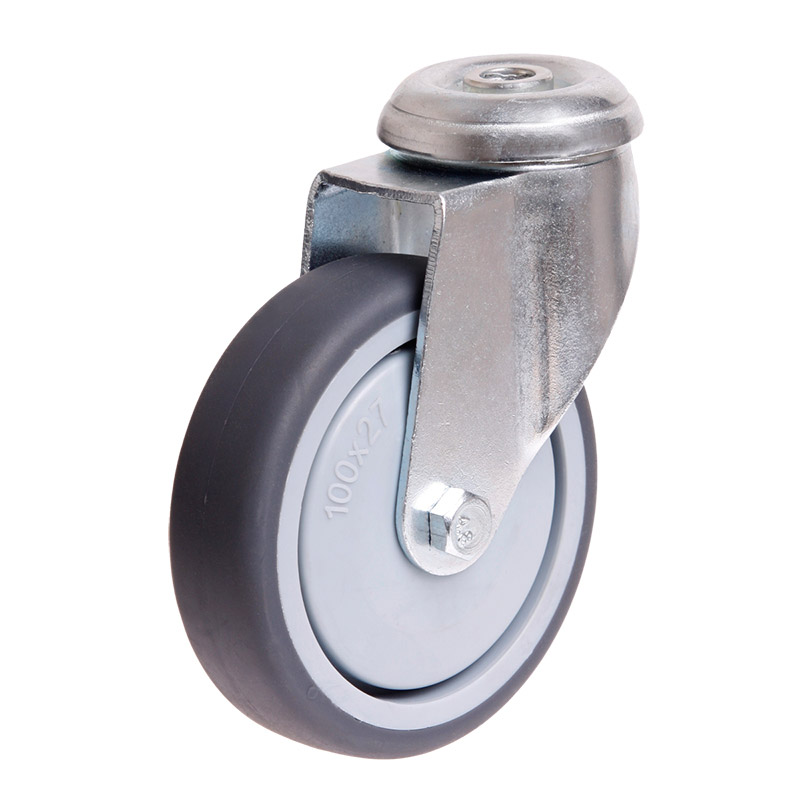

100mm Rubber Wheel 70kg Capacity Castor (S4714)

The S4714 from Richmond Rolling Solutions is a swivel frame castor and has a institutional rubber wheel. This swivel castor is one of our utility series range and can safely take loads up to 70kg. The S4714 is assembled with ball bearings on the castors axle. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and you can order separately (Part Number: iR4401). For the same castor with a brake, see S4714B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code	S4714
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	25
Wheel Type	Institutional Rubber
Wheel Code	IR4401
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	131
Swivel Radius (mm)	90
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	70
Recommended Load Capacity (kg)	60

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
