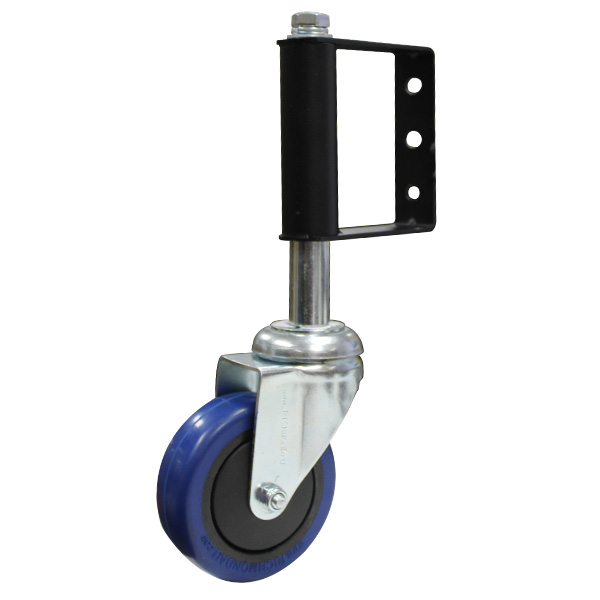

100mm Rebound Rubber Spring Loaded Gate Wheel 30kg Capacity (S4023)

100mm Rebound Rubber Spring Loaded Gate Wheel 30kg Capacity (S4023)

Our range of spring loaded gate wheels are ideal for use over uneven surfaces. They have exceptional shock absorbing qualities, and make the closing and opening of residential gates easier. This range features an enclosed spring design to reduce pinch-points and corrosion.

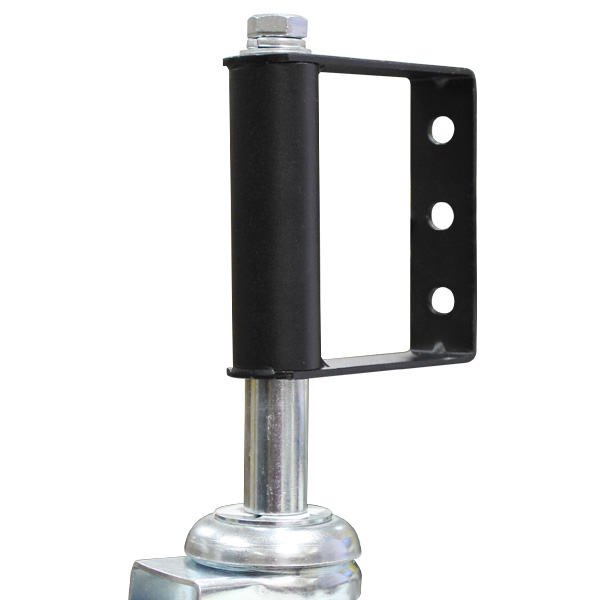

They are supplied with an attractive black steel frame which is also compatible with any castor with an M12 bolt hole. This model is supplied complete with a 100mm rebound rubber castor, which is non-marking and shock absorbing. Richmond’s Spring Loaded Gate Castors are designed to make opening and closing of residential gates easier. The spring loaded design provides shock absorption features specifically for use on uneven surfaces. The gate mount is integrated into the frame of the castor for easy fixing to any gate system.

View Specifications View Specifications Shipping Information

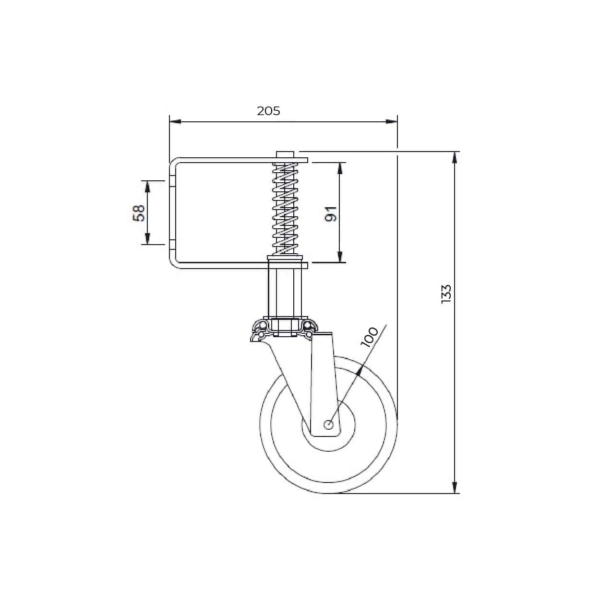

Specifications

Product Code	S4023
Wheel Diameter (mm)	100
Frame Type	Swivel with Enclosed Spring
Wheel Width (mm)	30
Wheel Type	Rebound Rubber
Wheel Code	RR4473
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	133
Swivel Radius (mm)	90
Bolt Size	M12
Maximum Load Capacity (kg)	30

Enclosed Spring
