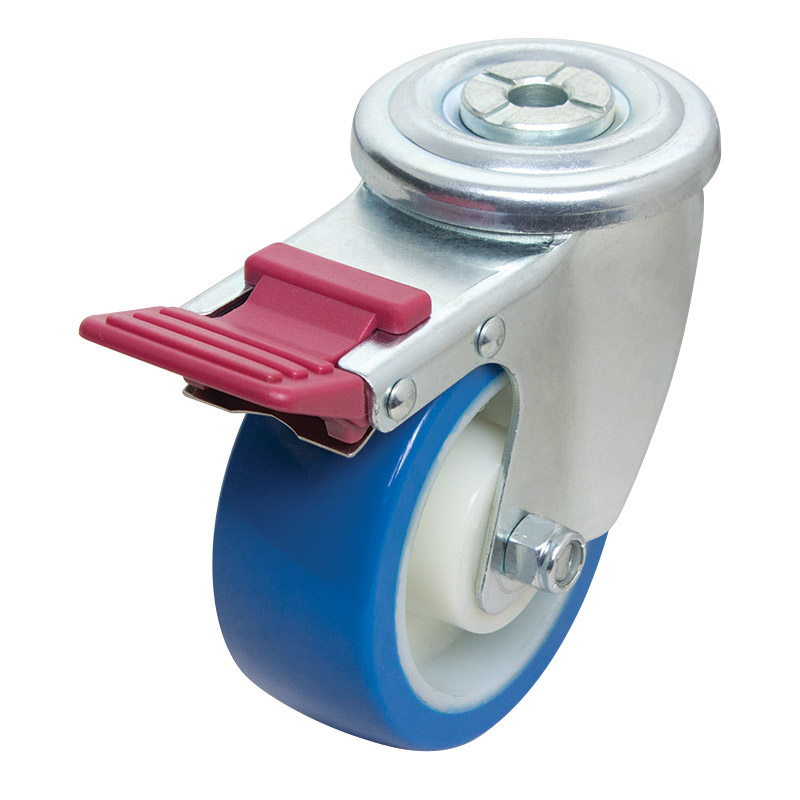

100mm Rebound Polyurethane Bolt Hole 300 Series Castor (S4216B)

The S4216B by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 150kg. The S4216B wheel is fitted with stainless steel roller bearings and is mounted with a bolt. The swivel frame allows the load to be steered. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072). To order this castor without a brake, search for S4216.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4216B
Wheel Diameter (mm)	100
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Rebound Polyurethane
Wheel Code	RP4072
Wheel Bearing Type	Stainless Roller Bearing
Castor Height (mm)	130
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	150
Recommended Load Capacity (kg)	110
