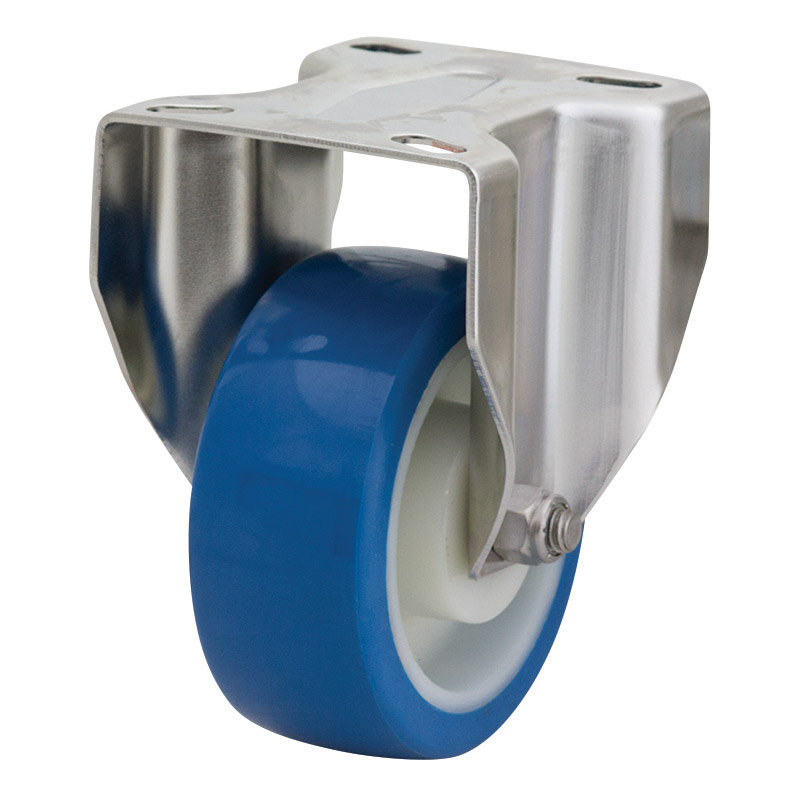

100mm Reb Poly Wheel 140kg Capacity Castor
Model Number: R4145
Frame Type: Rigid
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | R4145 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Rigid |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
The R4145 by Richmond Rolling Solutions is a rigid frame castor and is fitted with a rebound polyurethane wheel. This rigid castor is one of our stainless steel excel plate range and can hold loads up to 140kg. The R4145 is assembled with stainless steel roller bearings on the castors axle and is mounted with the baseplate. The rigid frame of this castor allows for linear movement and steering can be achieved by using in conjunction with swivel castors. The overall rebound polyurethane wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072).
Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond's Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.
View Specifications
| Product Code | R4145 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Rigid |
| Wheel Width (mm) | 35 |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 133 |
| Maximum Load Capacity (kg) | 200 |
| Recommended Load Capacity (kg) | 110 |
