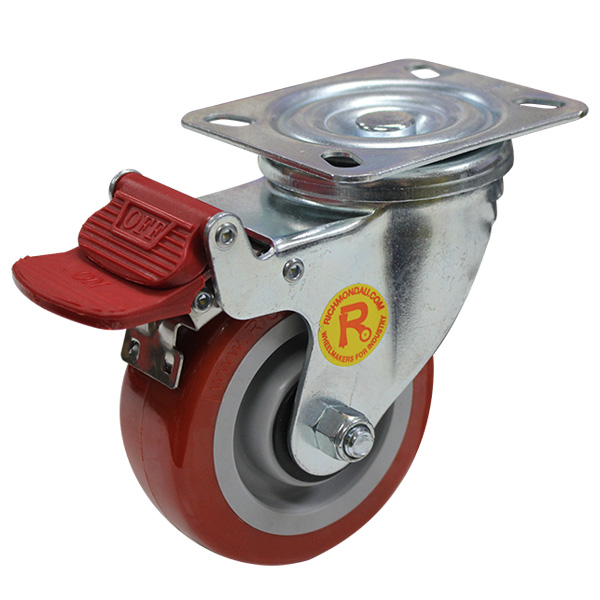

100mm Polyurethane Tyre on Nylon Centre Wheel 200kg Capacity Castor (S4044B)

The S4044B from Richmond is a swivel frame castor and uses a polyurethane wheel. This swivel castor is in our 300 series plate range and can safely take loads up to 200kg. The S4044B is assembled with roller bearings on the castors axle and is baseplate mount. The swivel frame design of this castor permits the load to be steered. The outside diameter of the polyurethane wheel is 100mm, the wheel width is 35mm and can be ordered separately (PU4408). To order this castor without a brake, search for S4044.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4044B
Wheel Diameter (mm)	100
Frame Type	Swivel with Brake
Wheel Width (mm)	35
Wheel Type	Polyurethane Tyred Nylon Centred
Wheel Code	PU4408
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	130
Swivel Radius (mm)	125
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
