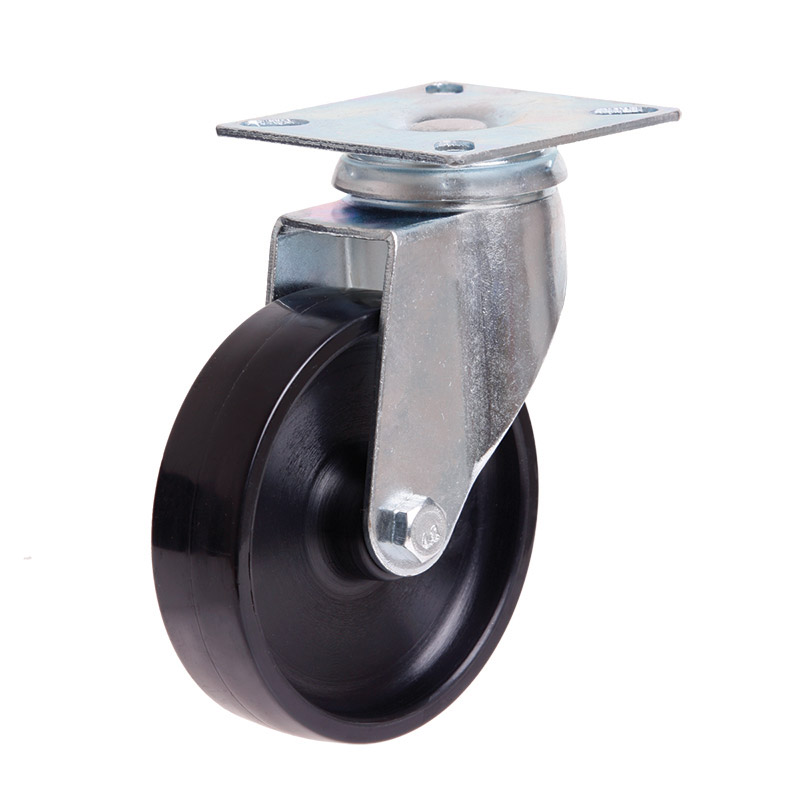

100mm Nylon Wheel 70kg Capacity Castor (S4716)

The S4716 by Richmond Rolling Solutions is a swivel frame castor and features a nylon wheel. This swivel castor is part of our utility series range and can safely take loads up to 70kg. The S4716 is assembled with plain bearings on the castors axle. The swivel frame design of this castor allows the castor to swivel 360°. The diameter of the nylon wheel is 100mm, the wheel width is 25mm and can be ordered separately (NY4415). For the same castor with a brake, see S4716B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.

Product Code	S4716
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	25
Wheel Type	Nylon
Wheel Code	NY4415
Wheel Bearing Type	Plain Bore
Castor Height (mm)	134
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	70
Recommended Load Capacity (kg)	60

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
