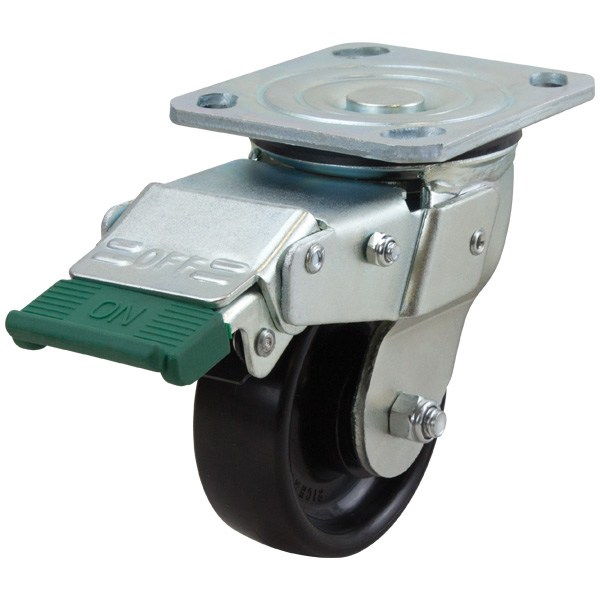

100mm Nylon Wheel 300kg Capacity Castor
Model Number: S4435D
Frame Type: Swivel with Directional Lock
- Swivel

- Swivel with Directional Lock

- Swivel with Swivel Lock & Brake

- Rigid

- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S4435D |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY413 |
.This castor includes a directional lock - This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a 'D' at the end of the castor code, and feature a green pedal on the castor frame.
Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.
View Specifications
| Product Code | S4435D |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 35 |
| Wheel Type | Nylon |
| Wheel Code | NY413 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 142 |
| Swivel Radius (mm) | 145 |
| Maximum Load Capacity (kg) | 300 |
| Recommended Load Capacity (kg) | 200 |
