100mm Nylon Bolt Hole 300 Series Castor (S4226)

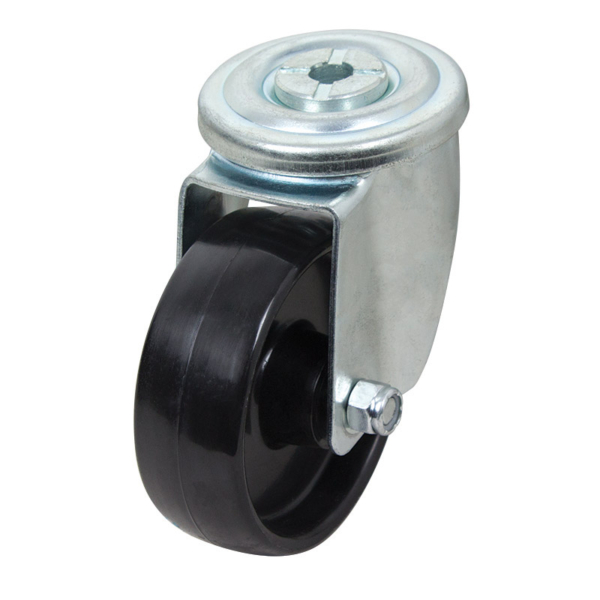

The S4226 manufactured by Richmond is a swivel frame castor and features a nylon wheel. This swivel castor is part of our 300 series bolt hole range and can hold loads up to 200kg. The S4226 is assembled with roller bearings on the castors axle and is bolt mount. The swivel frame allows the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY403). To order this castor with a brake, search for S4226B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4226
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY403
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	130
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
