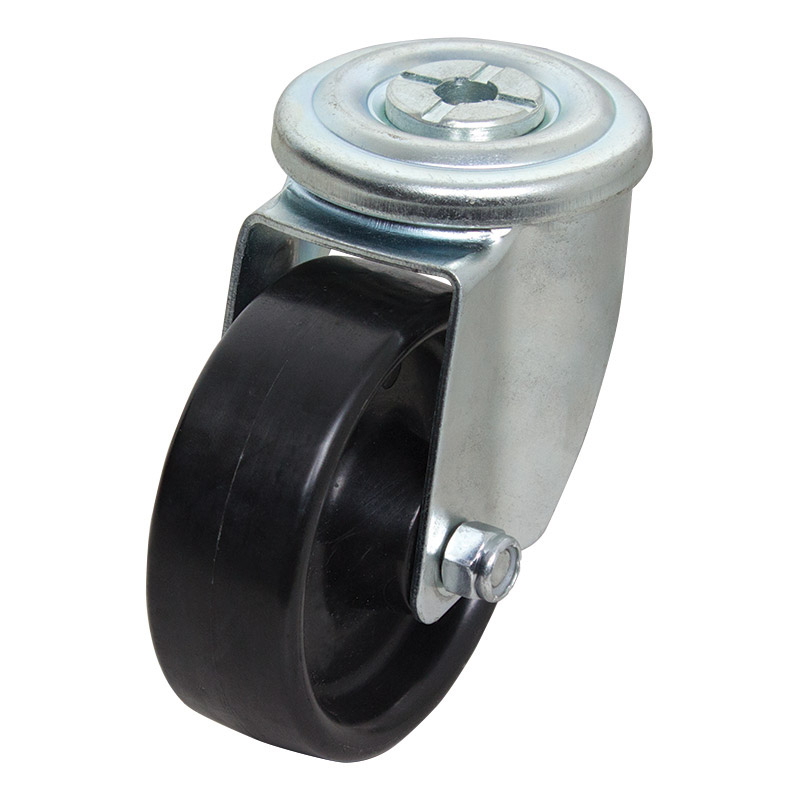

100mm Nylon Bolt Hole 300 Series Castor (S4222)

The S4222 by Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 200kg. The S4222 wheel is fitted with plain bearings and is mounted with a bolt. The swivel frame allows the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). For the same castor with a brake, see S4222B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4222
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	35
Wheel Type	Nylon
Wheel Code	NY401
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
