100mm Institutional Rubber Wheel 100kg Capacity Medical Castor
Model Number: S4293D
Frame Type: Swivel with Directional Lock
- Swivel
- Swivel with Brake
- Swivel with Directional Lock
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S4293D |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 32 |
| Wheel Type | Grey Rubber |
| Stem Diameter (mm) | 28 |

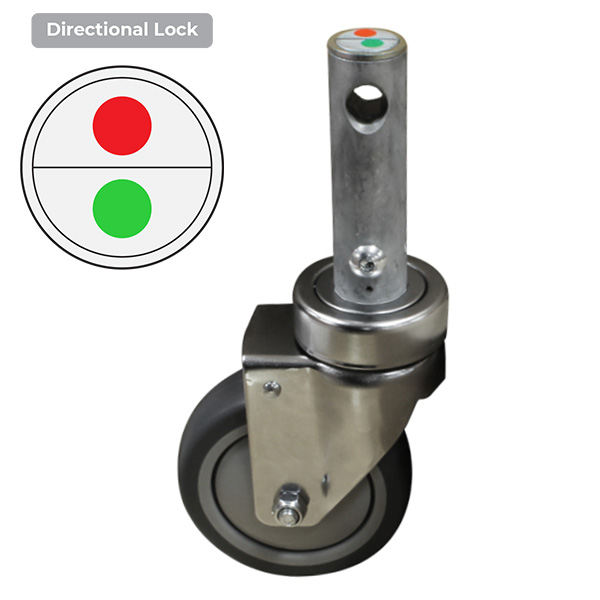

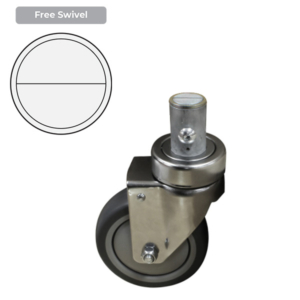

The S4293D from Richmond is a swivel frame castor and features a institutional rubber wheel. This swivel castor is one of our medical range and can hold loads up to 100kg. The S4293D wheel is fitted with ball bearings. The swivel frame design of this castor allows the castor to swivel 360°. The outside diameter of the institutional rubber wheel is 100mm, the wheel width is 32mm. This model can also be ordered without the direction lock (part number S4293).
View Specifications
| Product Code | S4293D |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 32 |
| Wheel Type | Grey Rubber |
| Stem Diameter (mm) | 28 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 142 |
| Swivel Radius (mm) | 80 |
| Maximum Load Capacity (kg) | 100 |
| Recommended Load Capacity (kg) | 90 |
