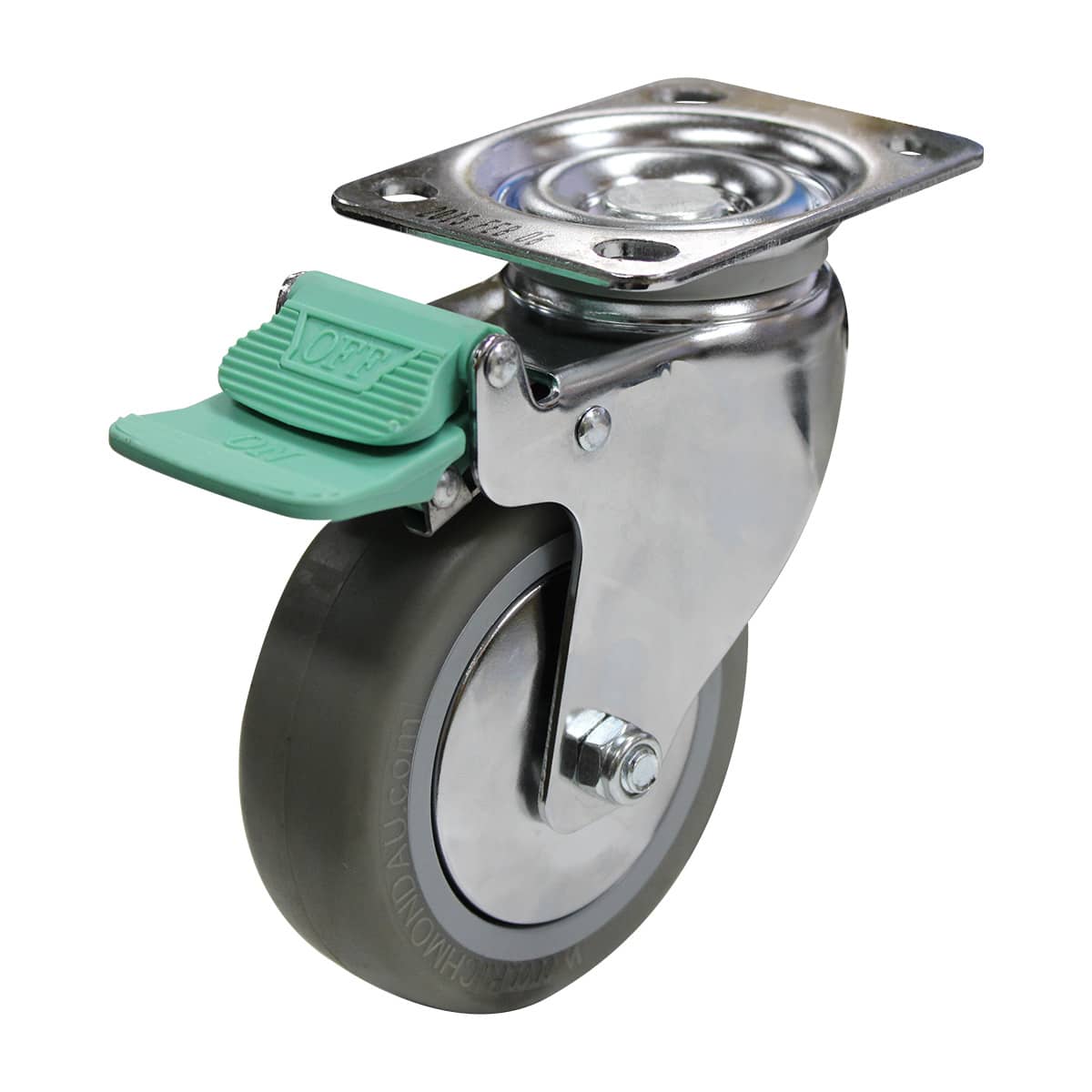

100mm Inst Rubber Swivel Chrome Durolite Castor (S4474D)

The S4474D by Richmond is a swivel frame castor and features a institutional rubber wheel. This swivel castor is part of our chrome durolite plate range and has a top load capacity of 100kg. The S4474D uses ball bearings for wheel rotation and is baseplate mount. This castors swivel frame allows the load to be steered. The diameter of the institutional rubber wheel is 100mm, the wheel width is 32mm and can be ordered separately (iR4004). To order this castor without the direction lock, search for S4474.

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code, and feature a green pedal on the castor frame.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Truly the best looking durable castor in its class, Richmond’s Chrome Durolite Series is ideal for use in hospitals, institutions, nursing homes and an attractive addition to furniture and retail displays. The combination of a pressed metal frame and chrome finish provides both strength and corrosion resistance. A robust twin swivel race design provides durability and longevity in the workplace.

Product Code	S4474D
Wheel Diameter (mm)	100
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	32
Wheel Type	Institutional Rubber
Wheel Code	IR4004
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	135
Swivel Radius (mm)	106
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
