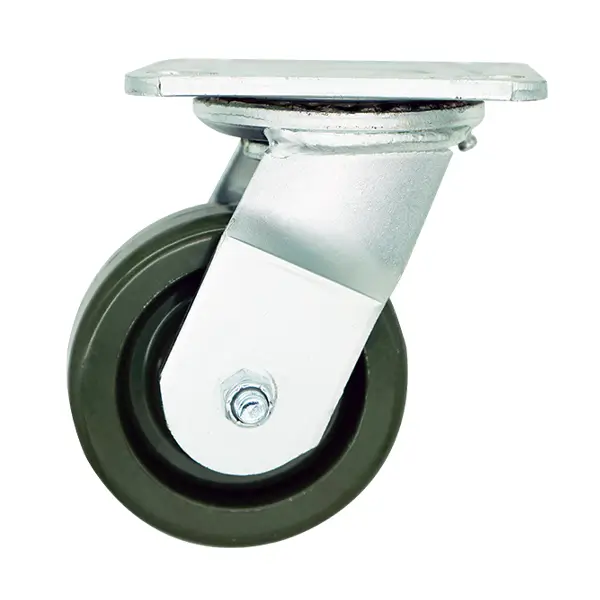

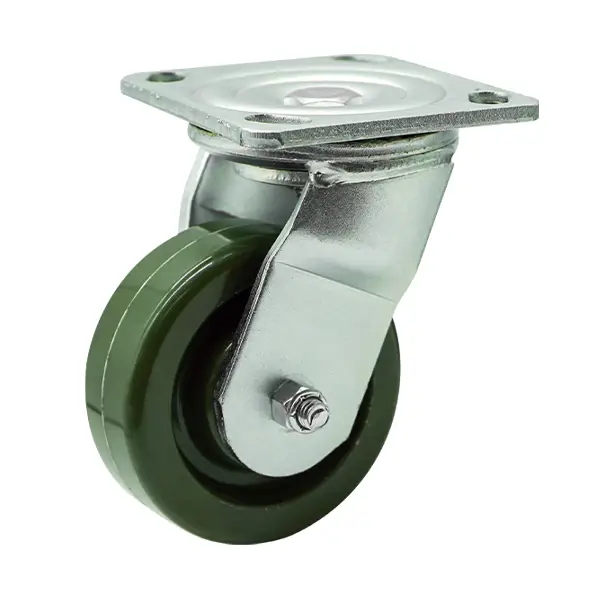

100mm High Temp Resin Wheel 300kg Capacity Castor
Model Number: S4278
Frame Type: Swivel
- Swivel
- Rigid
- Ships worldwide
- OEM & custom builds
Prefer to talk? Phone +84 028 6287 6012 · WhatsApp +61 417 368 015
Key specifications
| Product Code | S4278 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 38 |
| Wheel Type | High Temp Epoxy Resin |
| Wheel Code | HT483-37 |
- 300kg load capacity
- High temp epoxy resin wheel sutiable for temperatures ranging from -20 to 240 degrees celsius
- 84mm swivel radius
- 142mm height
- Heavy industrial swivel frame
- Dual precision bearings
- Wheel durometer shore D95
Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.
View Specifications
| Product Code | S4278 |
|---|---|
| Wheel Diameter (mm) | 100 |
| Frame Type | Swivel |
| Wheel Width (mm) | 38 |
| Wheel Type | High Temp Epoxy Resin |
| Wheel Code | HT483-37 |
| Wheel Bearing Type | Dual Precision Quad Bearings |
| Castor Height (mm) | 142 |
| Swivel Radius (mm) | 84 |
| Maximum Load Capacity (kg) | 300 |
| Temperature range (°C) | -20° to 240° |
Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
