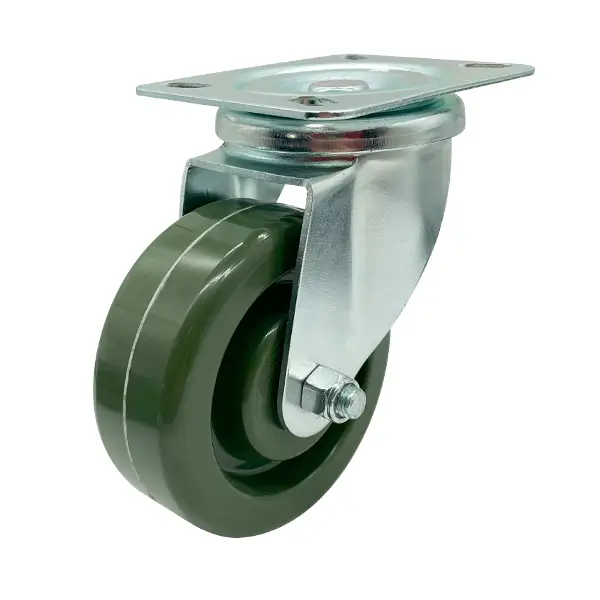

100mm High Temp Resin Wheel 300kg Capacity Castor (S4072)

300kg load capacity
High temp epoxy resin wheel sutiable for temperatures ranging from -20 to 240 degrees celsius
90mm swivel radius
130mm height
Dual precision bearings
Wheel durometer shore D95

This castors frame is a swivel frame which allows the castor to swivel or rotate 360° so the load may be steered.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S4072
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	36
Wheel Type	High Temp Epoxy Resin
Wheel Code	HT483-37
Wheel Bearing Type	Dual Precision Quad Bearings
Castor Height (mm)	130
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	300
Temperature range (°C)	-20° to 240°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
