100mm High Temp Polymer Swivel Zinc Durolite Castor (S4124)

100kg load capacity
Zinc plated corrosion resistant swivel frame
High temp polymer wheel
Suitable for extreme temperature ranges between -20°C-280°C
100mm diameter, 32mm width

This castors frame is a swivel frame which allows the castor to swivel or rotate 360° so the load may be steered.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

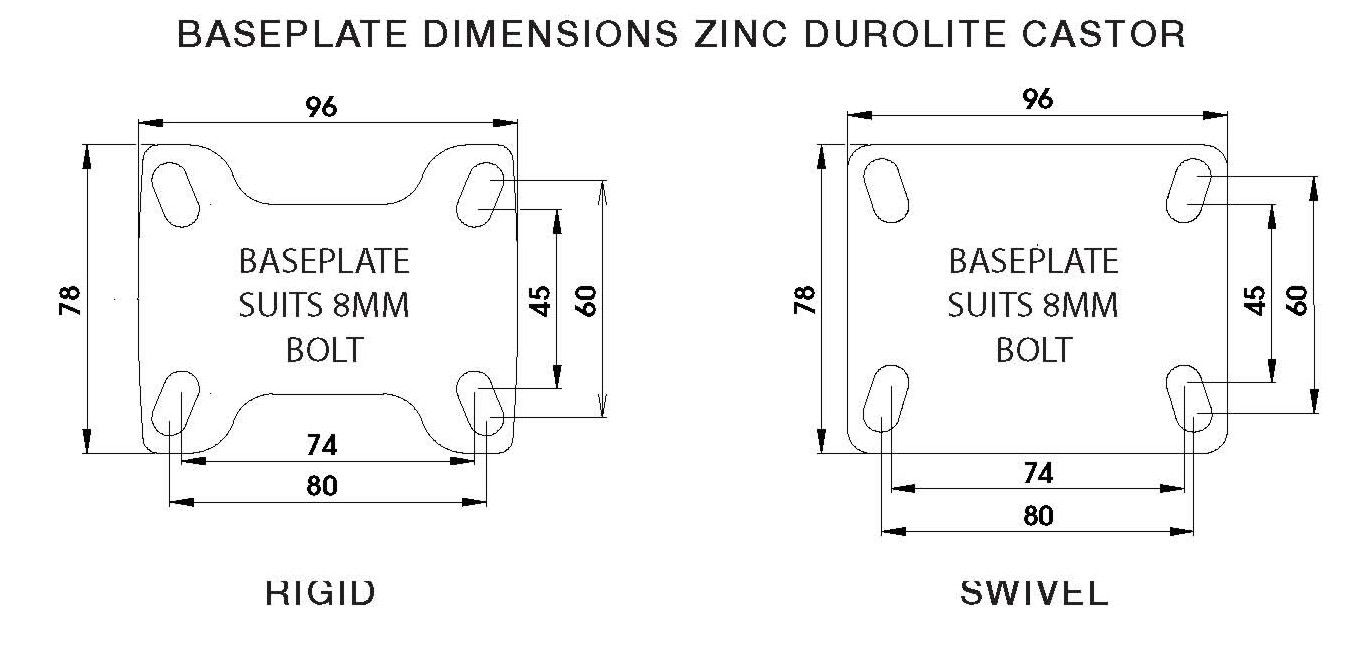

Available with a wide range of wheels, the Zinc Durolite Plate Series is commonly used on a vast array of mobile equipment. Enhanced by a twin swivel race ensuring longevity making it ideal for use in hospitals, retail shops and general industry. The baseplate of this castors has been designed for flexibility, with the bolt holes being slotted on an angle to allow users a multiple of mounting options. This means that the Zinc Durolite Plate castors can be matched with competitor and imported castors. The redesigned baseplate provides a superior castor for a growing number of uses and equipment.

Product Code	S4124
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	32
Wheel Type	High Temp Polymer
Wheel Code	HT481
Wheel Bearing Type	Oilless DU Bush
Castor Height (mm)	135
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	100
Temperature range (°C)	-30° to 280°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
