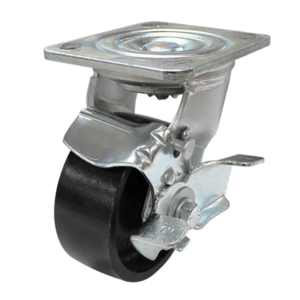

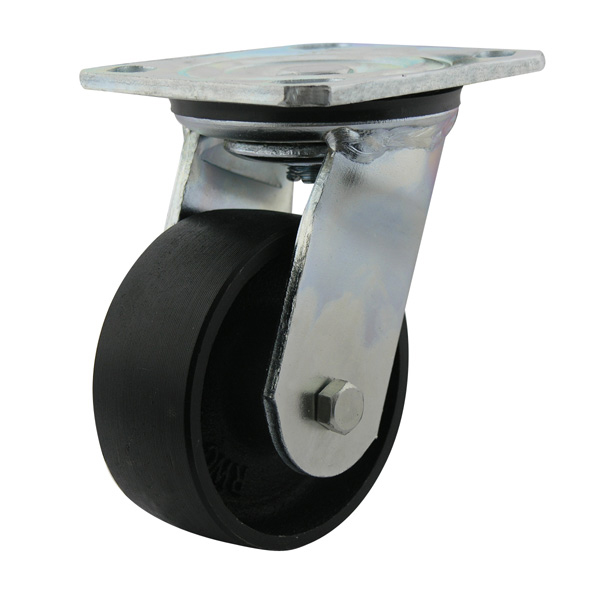

100mm Cast Iron Wheel 300kg Capacity Castor (S4450)

300kg load capacity
Cast iron wheel
Suitable for extreme temperature ranges between -30°C-300°C
100mm diameter, 38mm width

This castors frame is a swivel frame which allows the castor to swivel or rotate 360° so the load may be steered.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing. Cast Iron wheels have the lowest rolling resistance of all of Richmond’s castors however they are not suitable for some surfaces as damage could occur over time.

Product Code	S4450
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci421
Wheel Bearing Type	Plain Bore
Castor Height (mm)	142
Swivel Radius (mm)	84
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225
Temperature range (°C)	-30° to 300°

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.

Also in High-Low Temperature Castors

This range of castors are designed for temperature fluctuation and exposure from -30° to +350° with peaks of up to 400°C. Featuring castors from across Richmond’s entire range, these high and low temperature castors are frequently seen in bakery applications, smoke houses and chillers.

View High-Low Temperature Castors
