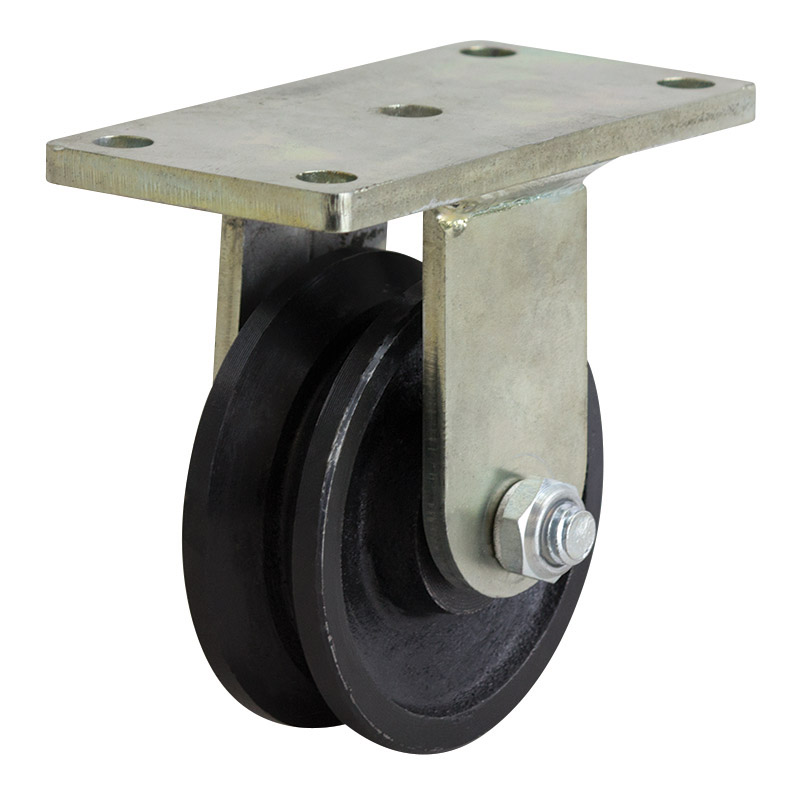

100mm Cast Iron Wheel 280Kg Capacity Castor (R466)

The R466 manufactured by Richmond is a rigid frame castor and features a cast iron wheel. This rigid castor is one of our heavy duty welded series range and has a maximum capacity of 280kg. The R466 wheel is fitted with ball bearings. The rigid frame design of this castor allows for steering only when used with swivel castors. The diameter of the cast iron wheel is 100mm, the wheel width is 36mm and can be ordered separately (VG459).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.

Product Code	R466VG
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	36
Wheel Type	VG Cast Iron
Wheel Code	VG459
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	132
Swivel Radius (mm)	90
Maximum Load Capacity (kg)	280
