100mm Cast Iron Wheel 200kg Capacity Castor (R4051)

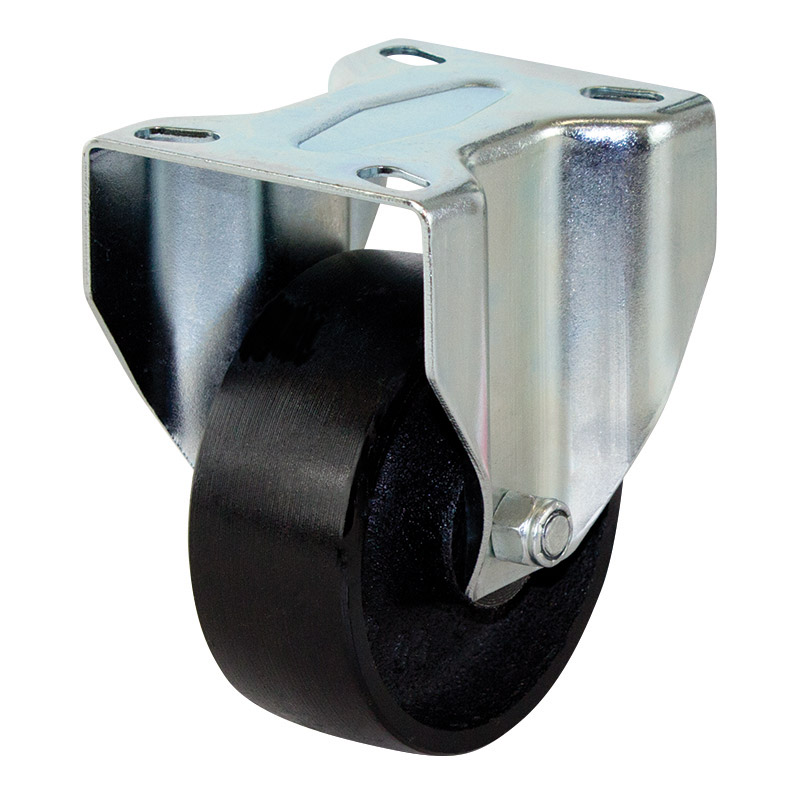

The R4051 from Richmond Rolling Solutions is a rigid frame castor and is fitted with a cast iron wheel. This rigid castor is one of our 300 series plate range and can hold loads up to 200kg. The R4051 is assembled with plain bearings on the castors axle and is plate mount. The rigid frame allows for steering only when used with swivel castors. The diameter of the cast iron wheel is 100mm, the wheel width is 38mm and can be ordered separately (Ci421).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	R4051
Wheel Diameter (mm)	100
Frame Type	Rigid
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci421
Wheel Bearing Type	Plain Bore
Castor Height (mm)	130
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150
Temperature range (°C)	-30° to 300°
