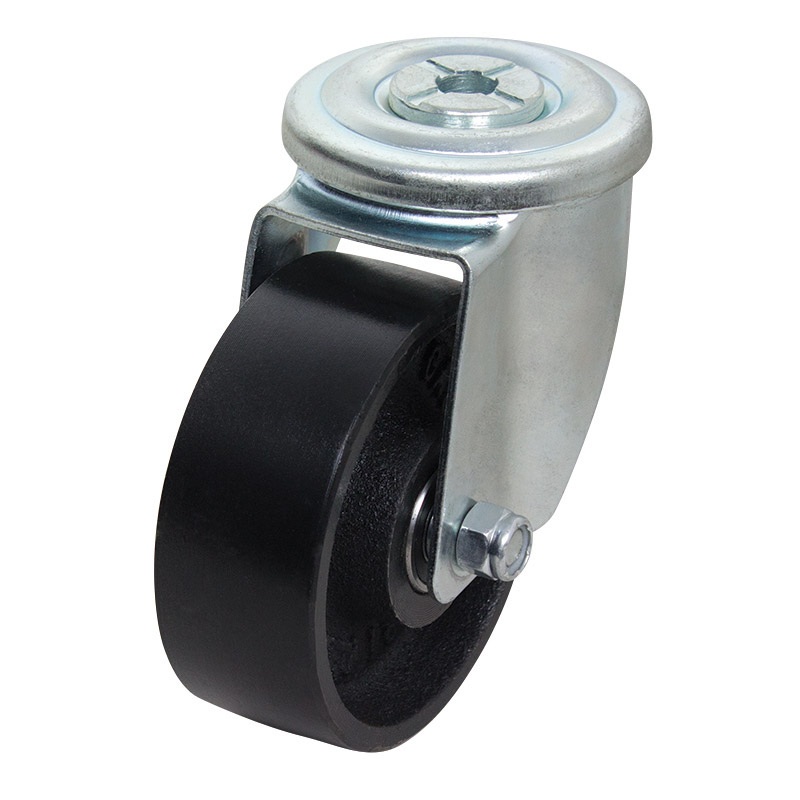

100mm Cast Iron Bolt Hole 300 Series Castor (S4236)

The S4236 by Richmond Rolling Solutions is a swivel frame castor and uses a cast iron wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S4236 uses ball bearings for wheel rotation and is mounted with a bolt. The swivel frame of this castor allows the load to be steered. The overall cast iron wheel diameter is 100mm, the wheel width is 38mm and you can order separately (Part Number: Ci400). This model can also be ordered with a brake (part number S4236B).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S4236
Wheel Diameter (mm)	100
Frame Type	Swivel
Wheel Width (mm)	38
Wheel Type	Cast Iron
Wheel Code	Ci400
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	130
Swivel Radius (mm)	90
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	200
Recommended Load Capacity (kg)	150

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
