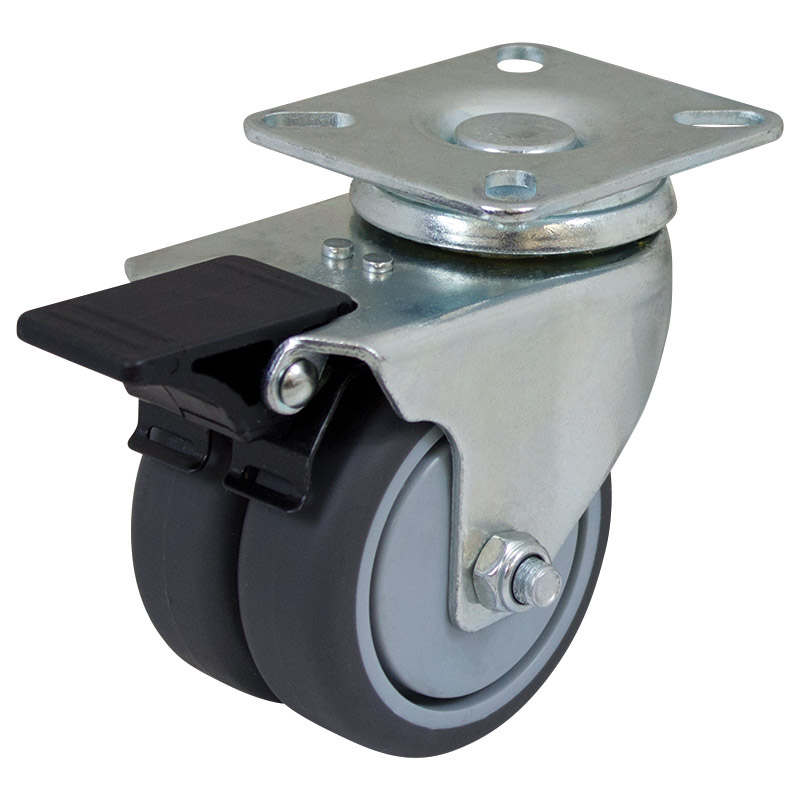

75mm Swivel Twin Wheel Plate Castor (S3718B)

The S3718B from Richmond Rolling Solutions is a swivel frame castor and is fitted with 2 institutional rubber wheels. This swivel castor is one of our utility series twin wheel range and can hold loads up to 80kg. The S3718B wheel is fitted with ball bearings. This castors swivel frame allows the load to be steered. The diameter of the institutional rubber wheels is 75mm, the wheels width is 2 x 25mm and can be ordered separately. This model can also be ordered without a brake (part number S3718).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases manoeuvrability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3718B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	2 x 25
Wheel Type	Institutional Rubber
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	101
Swivel Radius (mm)	100
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
