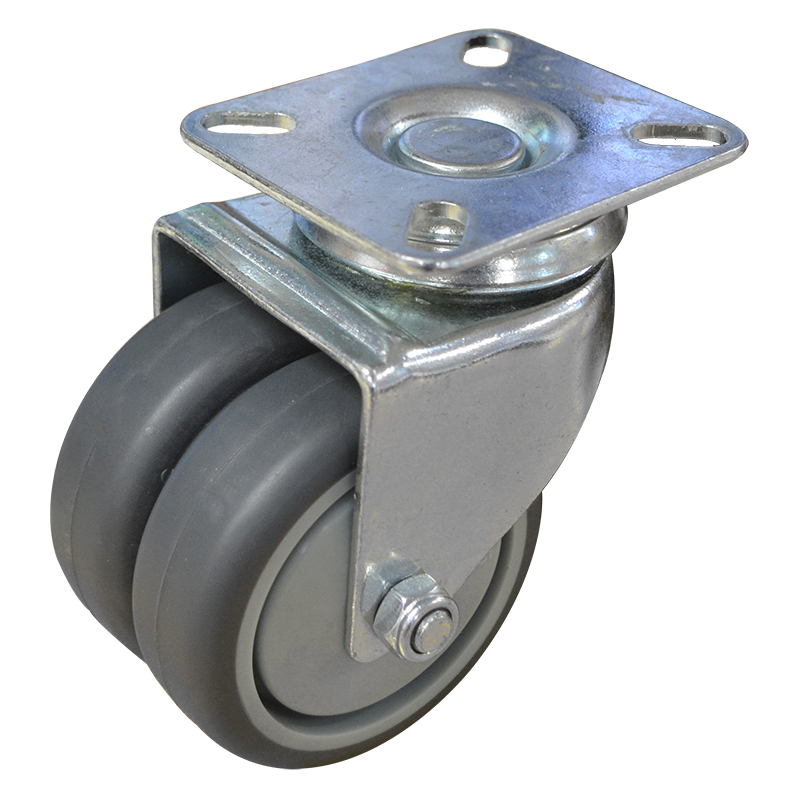

75mm Swivel Twin Wheel Plate Castor (S3718)

The S3718 manufactured by Richmond Rolling Solutions is a swivel frame castor and is fitted with 2 institutional rubber wheels. This swivel castor is in our utility series twin wheel range and can hold loads up to 80kg. The S3718 wheel is fitted with ball bearings. The swivel frame permits the load to be steered. The overall institutional rubber wheels diameter is 75mm, the wheels width is 2 x 25mm and can be ordered separately. To order this castor with a brake, search for S3718B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The twin wheel low profile design not only increases maneuverability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code	S3718
Wheel Diameter (mm)	75
Frame Type	Swivel
Wheel Width (mm)	2 x 25
Wheel Type	Institutional Rubber
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	101
Swivel Radius (mm)	70
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	70
