Product Name : Steel Gear Rack
Height (mm): 30
Length (mm): 1005
Width (mm): 12
Spacer Pin Length (mm): 24
Teeth Pitch (mm): 12.66

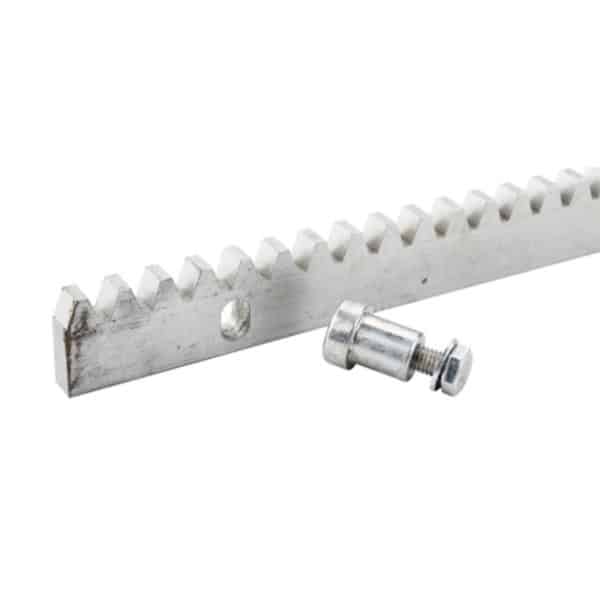

Silver zinc plated steel gate gear rack to suit Module 4 (M4) drive pinions. Supplied in 1 meter lengths, this gate rack is machined from engineering grade steel. For a ligther duty gate gear rack with the same pitch, see our nylon gear rack.
Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
