McNeilus 3-7/8" Complete Roller Assembly – Heat-Treated C45 Steel Roller | Ductile Iron Bracket | 455/453A Bearing

Heavy-duty replacement roller assembly designed for McNeilus refuse truck applications.

Complete McNeilus 3-7/8″ roller assembly
Forged C45 steel roller for high strength and durability
Heat-treated roller surface for increased wear resistance
Surface hardness of 50-55 HRC
Hardened wear depth of 7-8 mm
Heavy-duty GB QT500 ductile iron bracket
Precision 455/453A tapered roller bearings
Steel-backed NBR rubber oil seals for contaminant protection
Designed for demanding refuse truck and compactor applications
Complete pre-assembled unit for simplified installation

View Specifications View Specifications Shipping Information

Description

The McNeilus 3-7/8″ Complete Roller Assembly is a heavy-duty replacement component engineered for refuse truck applications where durability and reliable performance are essential. Manufactured with a forged C45 steel roller and a high-strength ductile iron mounting bracket, this complete assembly is built to withstand continuous heavy loads and demanding operating conditions.

The roller features a heat-treated running surface with a hardened wear layer to improve abrasion resistance and extend service life. Precision 455/453A tapered roller bearings and steel-backed NBR oil seals provide smooth operation while helping protect internal components from contaminants.

Supplied as a complete, ready-to-install assembly, this unit is an ideal replacement for worn or damaged OEM roller assemblies.

Roller Size	3-7/8"
Roller Material	Heat Treated Forged C45 Steel
Surface Hardness	50–55 HRC
Hardnened Depth	7-8mm
Bracket Material	Ductile Iron (GB QT500)
Bearing	455 /453A Tapered Roller Bearing
Oil Seal Material	Steel / NBR Rubber

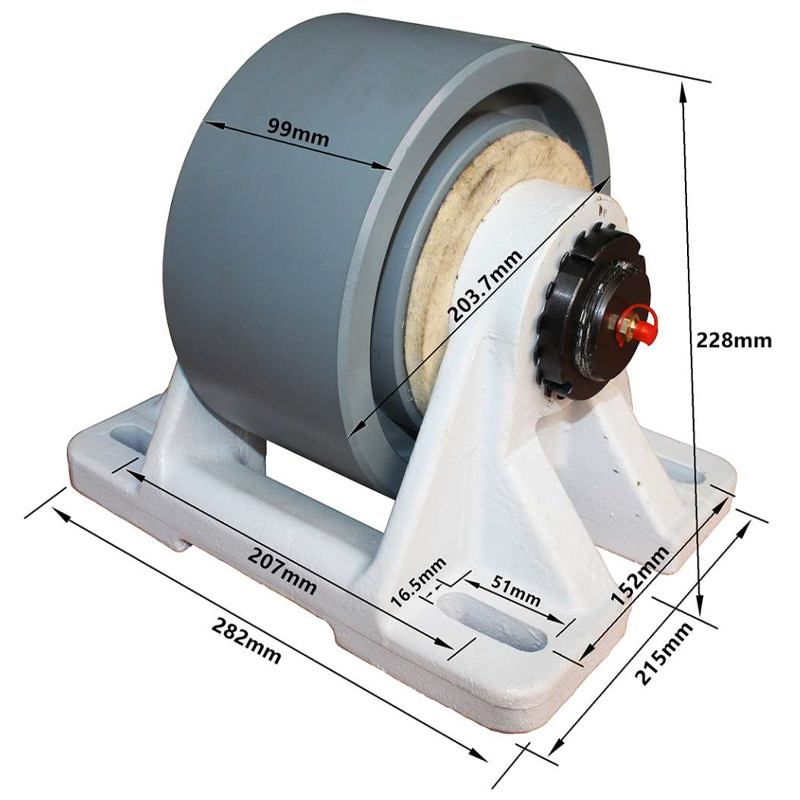

Roller Diameter	203.7mm
Roller Width	99mm
Overall Height	228mm
Base Length	282mm
Base Width	215mm
Mounting Base Length	207mm
Mounting Hole Spacing	132mm

Drum roller types and specifications	Download

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
