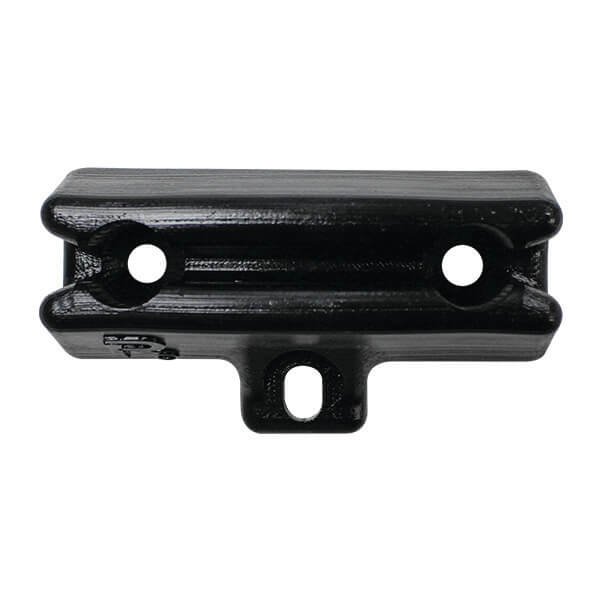

Floor Mount Bolt Down Door Guide (GTR077)

Floor Mount Bolt Down Door Guide (GTR077) - Image 2

Floor Mount Bolt Down Door Guide (GTR077) - Image 3

Floor Mount Bolt Down Door Guide (GTR077)

This bolt down bracket supports your door and provides smooth movement when being moved by Richmond’s hanging rollers.

To use: fix a guide plate to the bottom of your door, this guide plate sits in the middle of the GTR077 guide as the door is moved open and closed.

The guide plate can be either flat bar, or angle iron. 6mm thick.

To fasten the GTR077 to the ground, we recommend using:

For Concrete: 2x Countersunk concrete screw anchors, or traditional dynabolts M6 x 50mm
For Timber: 2x Countersunk timber screws M6 x 50mm

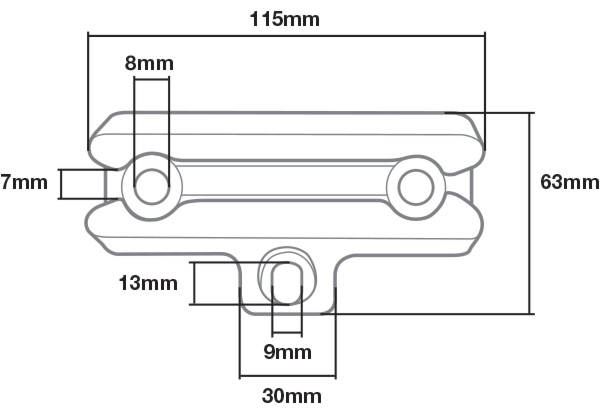

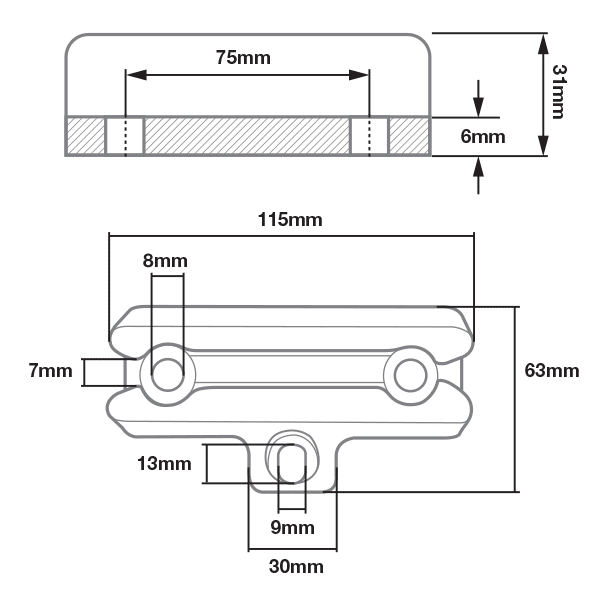

Length: 150mm

Width: 63mm

Channel Width: 7mm

Channel Depth: 25mm

Height: 34mm
