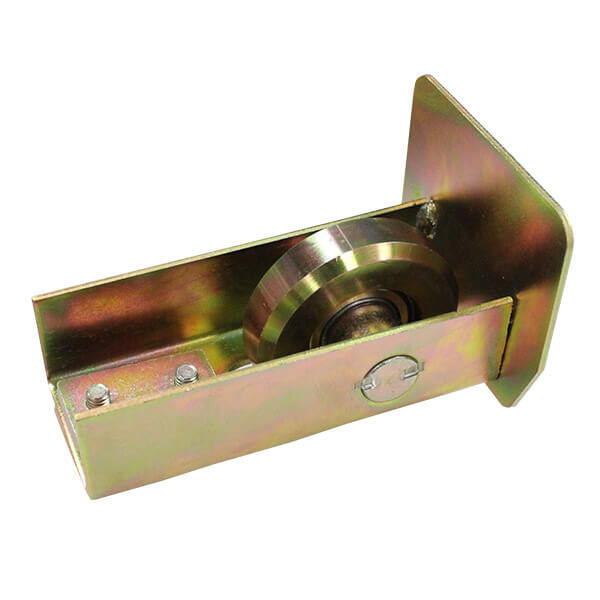

Cantilever Gate Guide Wheel (GTR030) - Image 2

Cantilever Gate Guide Wheel (GTR030)

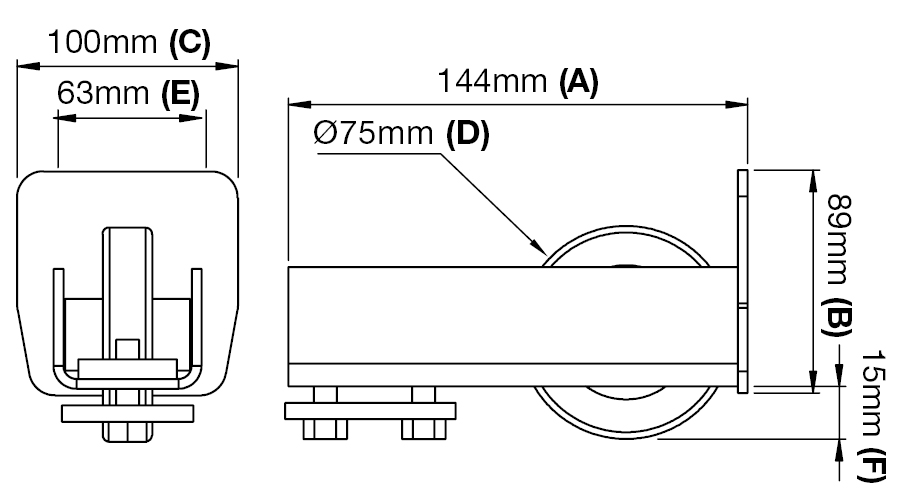

Suits GTR024 100mm wide cantilever gate channel.

A: 144mm

B: 89mm

C: 100mm

D: 75mm

E: 63mm

F: 15mm

Our cantilever gate guide wheels are clamped in the ends of the gate channel. The guide wheel protrudes from the bottom of the channel and will roll smoothly into the Cantilever Gate End Catch (Sold Separately). Zinc Plated to protect from rust, our cantilever gate guide wheels feature a heavy gauge steel construction and high-quality wheels.
