98mm Bottom Mount Gate Track Wheel (GTR093)

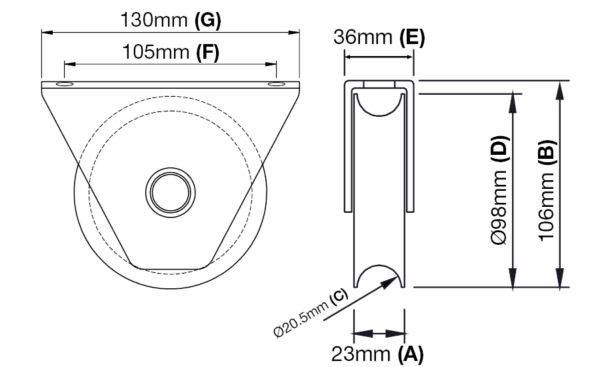

Wheel width (A): 23mm

Bottom Gate Height (B): 106mm

Track Profile Diameter (C): 20.5mm

Wheel Outer Diameter (D): 98mm

Overall Width (E): 36mm

Between Hole Centers (F): 105mm

Overall Length (G): 130mm

Capacity: 250kg

Wheel Grove Diameter (D1): 70mm

Richmond gate track wheels, used on both automatic sliding gates (electric sliding gates) and manual sliding gates, are precision machined to ensure a smooth and consistent rolling action on the gate track. For the gate track to suit, see GTR010. Richmond gate track wheels are zinc plated to protect from rust. The double bearing design of our gate track wheels ensures a longer life and increases load capacity. The frame of these bottom mount gate track wheels is designed to be bolted flat to the bottom of the gate. For a recessed, low profile design see our recessed gate track wheels.

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
