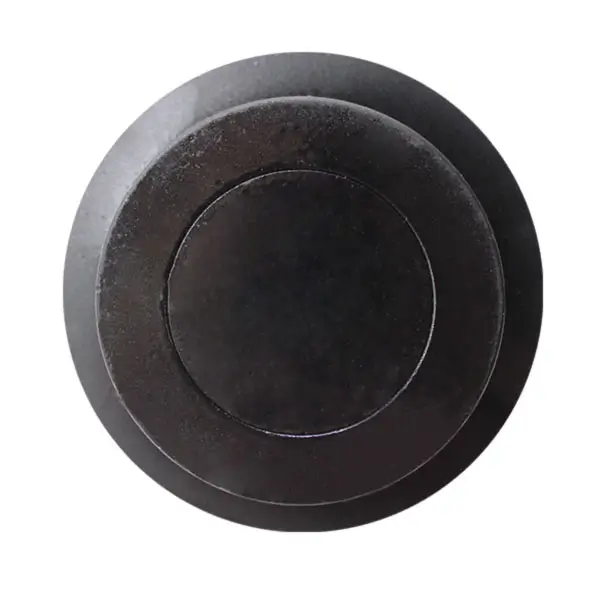

88mm Beam Trolley Track Wheel 20mm Axle Diameter (BT088)

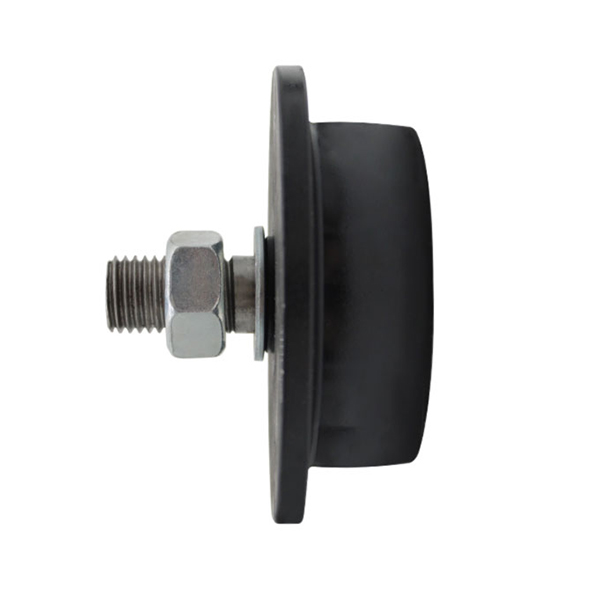

88mm Beam Trolley Track Wheel 20mm Axle Diameter (BT088) - Image 2

88mm Beam Trolley Track Wheel 20mm Axle Diameter (BT088)

Beam trolley wheels are often seen on overhead cranes and carriages, movable platforms, construction, assembly lines, storage systems, heavy duty applications, building applications and manufacturing process systems. Our standard range of beam trolley wheels has been designed to fit standard channel and beam sections.

Wheel: 88mm diameter x 27mm wide rim
Flange: 116mm diameter x 8mm wide flange

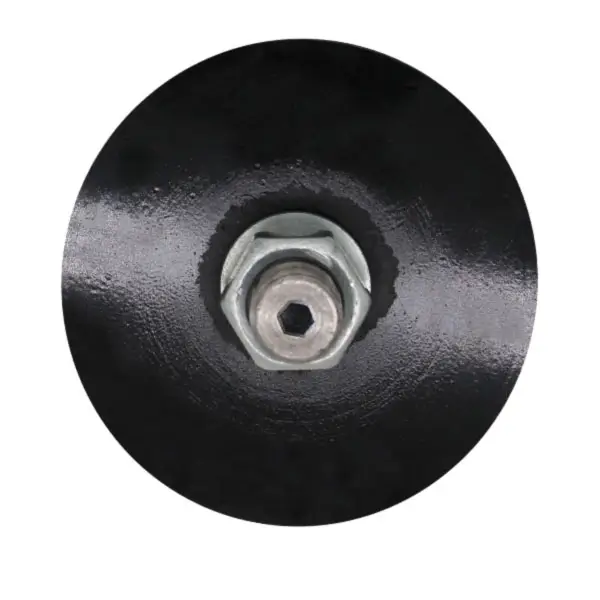

M20 axle bolt with hexagon recess for reliable adjustment
250kg Load Capacity
Black painted SG Iron finish
Double row angular contact ball bearings for increased the load capacity and side loading capacity compared to traditional beam trolley wheels with single row ball bearings.

We can also custom manufacture beam trolley wheels to suit your application. Contact our expert team for more information

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	BT088
Wheel Diameter (mm)	88
Rim Width (mm)	27
Flange Diameter (mm)	116
Flange Width (mm)	8
Material	SG Iron
Axle Thread	M20
Load Capacity (kg)	250

Download CAD Drawing (STEP file)	Download
