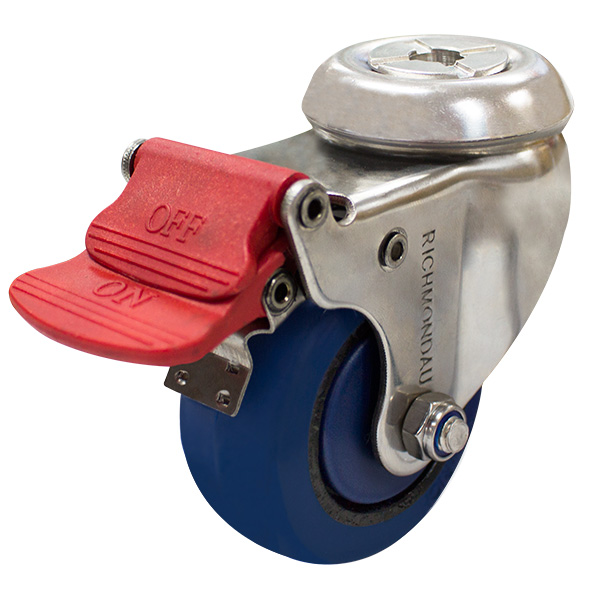

75mm Rebound Rubber Swivel Brake Castor (S3391B)

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	S3391B
Wheel Diameter (mm)	75
Frame Type	Swivel with Brake
Wheel Width (mm)	32
Wheel Type	Rebound Rubber
Wheel Code	RR3367
Wheel Bearing Type	Stainless Ball Bearing
Castor Height (mm)	105
Swivel Radius (mm)	105
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	80
Recommended Load Capacity (kg)	45

Download CAD Drawing (STEP file)	Download

12mm Bolt Hole

Grade 304 Stainless Steel

Swivel with Brake

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
