75mm Poly Ci Wheel 240Kg Capacity Castor (S327)

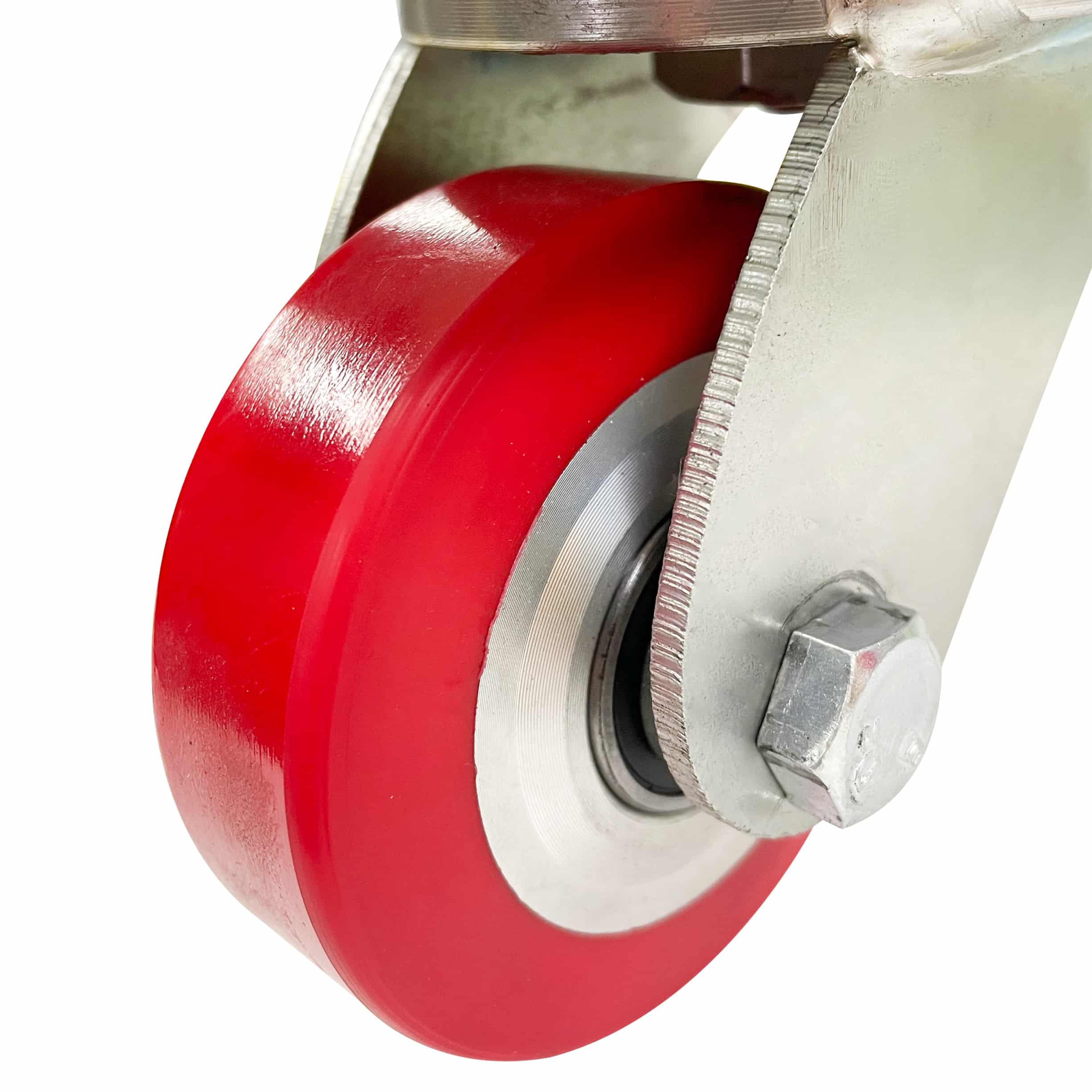

The S327 manufactured by Richmond is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is part of our heavy duty welded series range and can hold loads up to 240kg. The S327 is assembled with ball bearings on the castors axle. The swivel frame of this castor allows the castor to swivel 360°. The outside diameter of the polyurethane tyred cast iron wheel is 75mm, the wheel width is 25mm and you can order separately (Part Number: PU350).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Precision built for durability under extreme working conditions, the Heavy Duty Welded Series is ideal for the exhaustive demands of industrial environments when a low profile high load bearing castor is required. Featuring a precision machined swivel ball race provides an unrivalled ultra smooth swivel action and a king pin made of high tensile steel to withstand high side impact loads. Finished in an attractive zinc plating to provide corrosion resistance, Richmond can also supply the heavy duty welded series in stainless steel for sue in high corrosive environments.

Product Code	S327
Wheel Diameter (mm)	75
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	25
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU350
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	114
Swivel Radius (mm)	76
Maximum Load Capacity (kg)	240
Recommended Load Capacity (kg)	180

Swivel with Directional Lock

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
