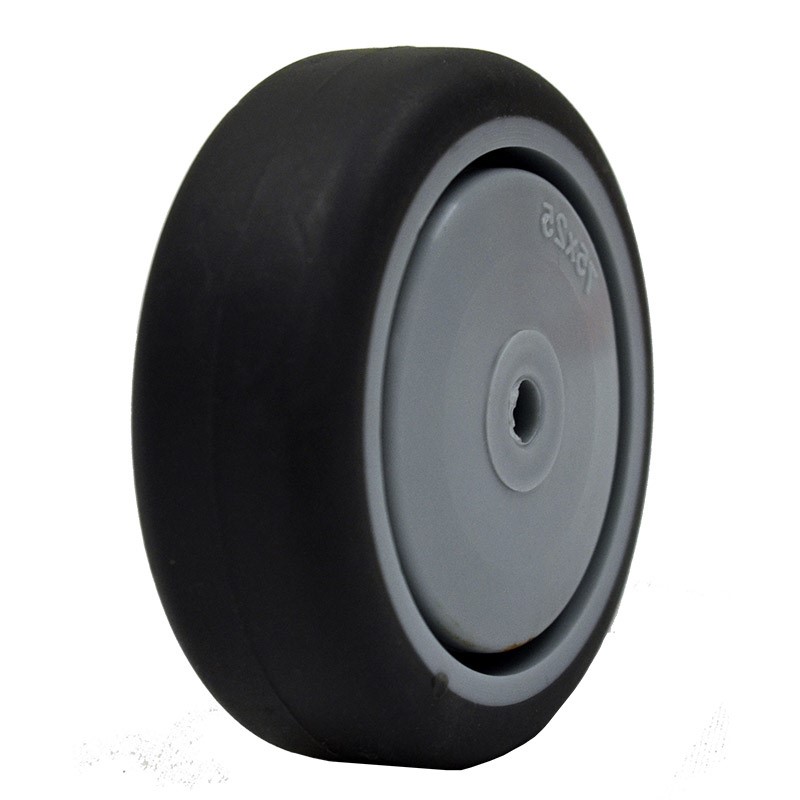

75mm Institutional Rubber Wheel | 1/4" Axle Diameter (IR3301-25)

Our institutional rubber wheels feature a non marking grey rubber tyre and are ideal for light applications.The IR3301-25 from Richmond Rolling Solutions is a 75mm diameter institutional rubber wheel that can safely take loads up to 100kg and has a tyre width of 25mm.The following Richmond castors use this wheel (not necessarily with the same axle diameter) S3714, S3714B, S3710, S3710B & R3711. The axle diameter is 1/4 inch.

View Specifications View Specifications Shipping Information

Specifications

Product Code	IR3301-25
Wheel Diameter (mm)	75
Tyre Width (mm)	25
Boss Width (mm)	25
Axle Diameter	1/4 inch (6.35mm)
Wheel Bearing Type	Ball Bearing
Maximum Load Capacity (kg)	100
Recommended Load Capacity (kg)	80
