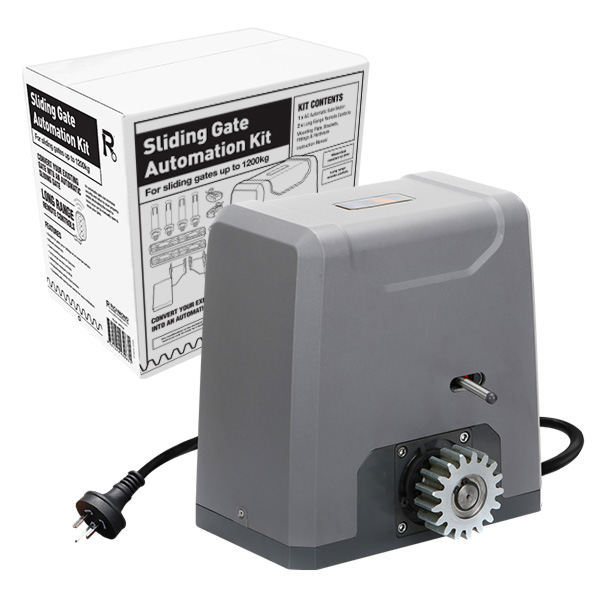

240V AC Powered Sliding Gate Motor suitable for gates up to 1200kg (GTR156)

240V AC Powered Sliding Gate Motor suitable for gates up to 1200kg (GTR156)

Electrical Safety Recall: Automated Sliding Gate Motor

Gate automation made simple!

Turn your existing gate into an automatic sliding gate with the automatic gate motor. An automatic sliding gate can increase security and value to your property whilst eliminating the need to leave your vehicle to manually open and close the gate. This motor plugs into a 240V power point.

To complete installation, you will need a pack of GTR092. A bolt on gear rack is required to convert a manual sliding gate into an automatic, remote controlled gate.

Shipping Information

Downloads

Instruction manual (2024)	Download
Instruction manual (pre 2024)	Download
GTR156 Spare Parts	Download

AC Power

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.

Features

Suitable for gates up to 1200kg on an even, flat surface

Manual release function

Water/dust resistant to IP54

Gate moving speed of 12m/min

Programmable safety stop function

Spring limit switch for easy installation

1 Year warranty

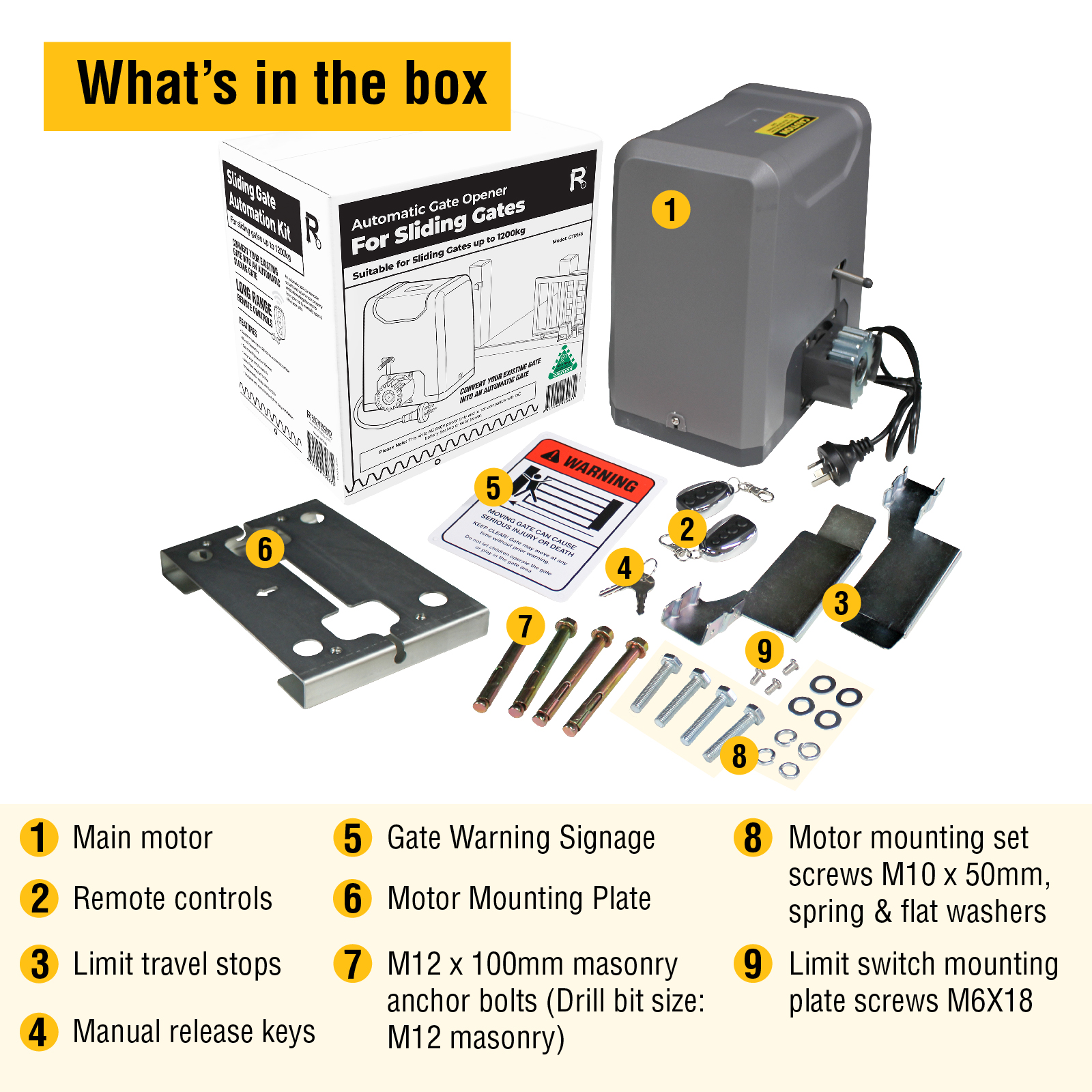

Box Contents

1 x 1200kg Gate Motor with 240V Power Plug

2 x Remote Controls

Brackets, Fittings & Hardware

Instruction Manual

Product FAQs

This motor operates on 240V AC power as standard. This requires an RCD protected weatherproof power point within 1m of the gate motor.

If you do not have an RCD protected power point you will need an electrician to fit one for you OR you can use one of the alternate power supplies listed below (this requires the purchase of optional accessories).

This kit can not be run on solar power or with battery backup.

To complete installation, you will need a pack of GTR092. A bolt on gear rack is required to convert a manual sliding gate into an automatic, remote controlled gate. Please ensure you pick up enough gear rack to apply to the length of the gate. Click to view product.

Below is a video guide on how to pair additional remotes or remove existing remotes from the gate motor

Here is a short video guide on where to locate the fuse for the gate motor
