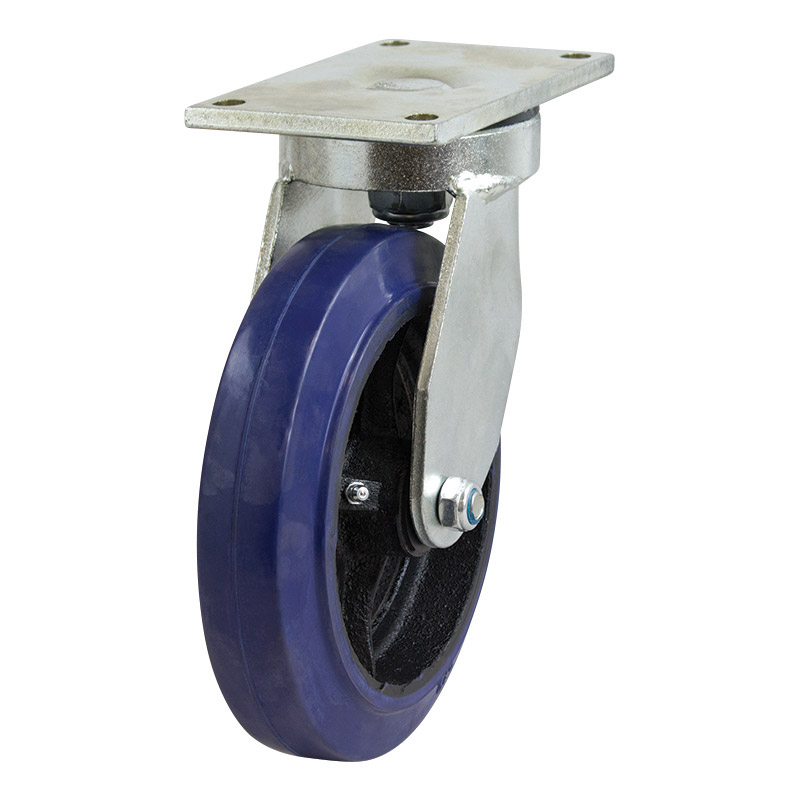

200mm Rubber Wheel 250kg Capacity Castor (S8230)

The S8230 by Richmond is a swivel frame castor and is fitted with a rubber wheel. This swivel castor is one of our 500 series range and has a top load capacity of 250kg. The S8230 uses roller bearings for wheel rotation. The swivel frame design of this castor allows the load to be steered. The outside diameter of the rubber wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: RT8842).

View Specifications View Specifications Shipping Information

Description
Specifications

Description

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code	S8230
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Rubber
Wheel Code	RT8842
Wheel Bearing Type	Roller Bearing
Castor Height (mm)	248
Swivel Radius (mm)	155
Maximum Load Capacity (kg)	250
recommended-load-capacity-kg
Towable	No

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
