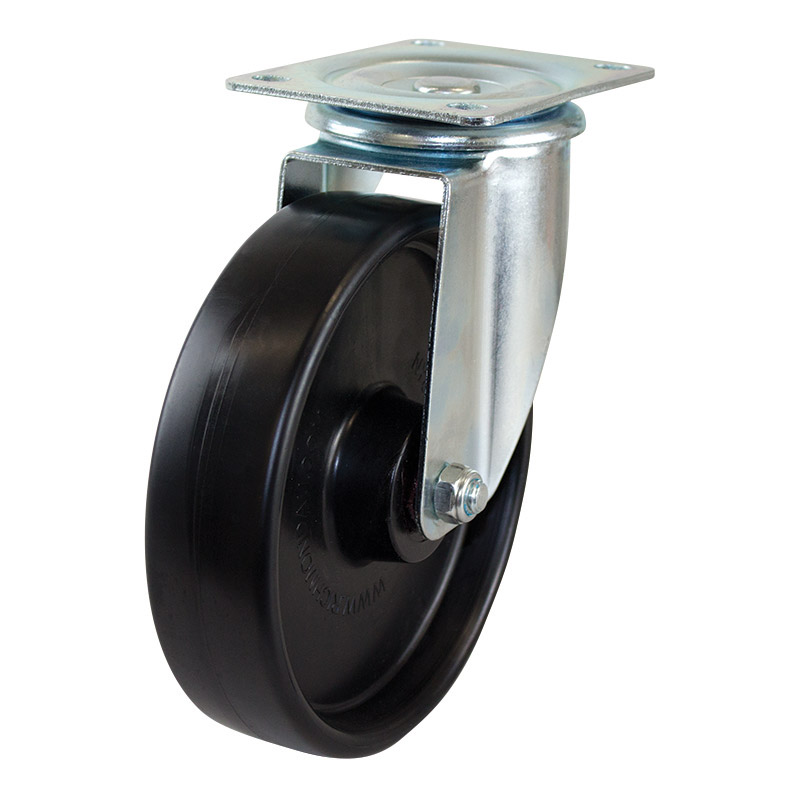

200mm Nylon Wheel 300kg Capacity Castor (S8032)

The S8032 manufactured by Richmond Rolling Solutions is a swivel frame castor and has a nylon wheel. This swivel castor is part of our 300 series plate range and can safely take loads up to 300kg. The S8032 uses plain bearings for wheel rotation and is mounted with the baseplate. The swivel frame allows the castor to swivel 360°. The overall nylon wheel diameter is 200mm, the wheel width is 50mm and can be ordered separately (NY800).

View Specifications View Specifications Shipping Information

Description

Meeting and exceeding all performance standards due to a higher load bearing capacity, the 300 Series has a wide range of uses. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases and transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series.

Product Code	S8032
Wheel Diameter (mm)	200
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Nylon
Wheel Code	NY800
Wheel Bearing Type	Plain Bore
Castor Height (mm)	187
Swivel Radius (mm)	170
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	225

Download CAD Drawing (STEP file)	Download

Swivel

Shipping Information

Shipping and lead time information is available upon request. Lead times may vary based on order quantities. For detailed information on our freight charges, click & collect locations, and additional shipping policies please contact us.
